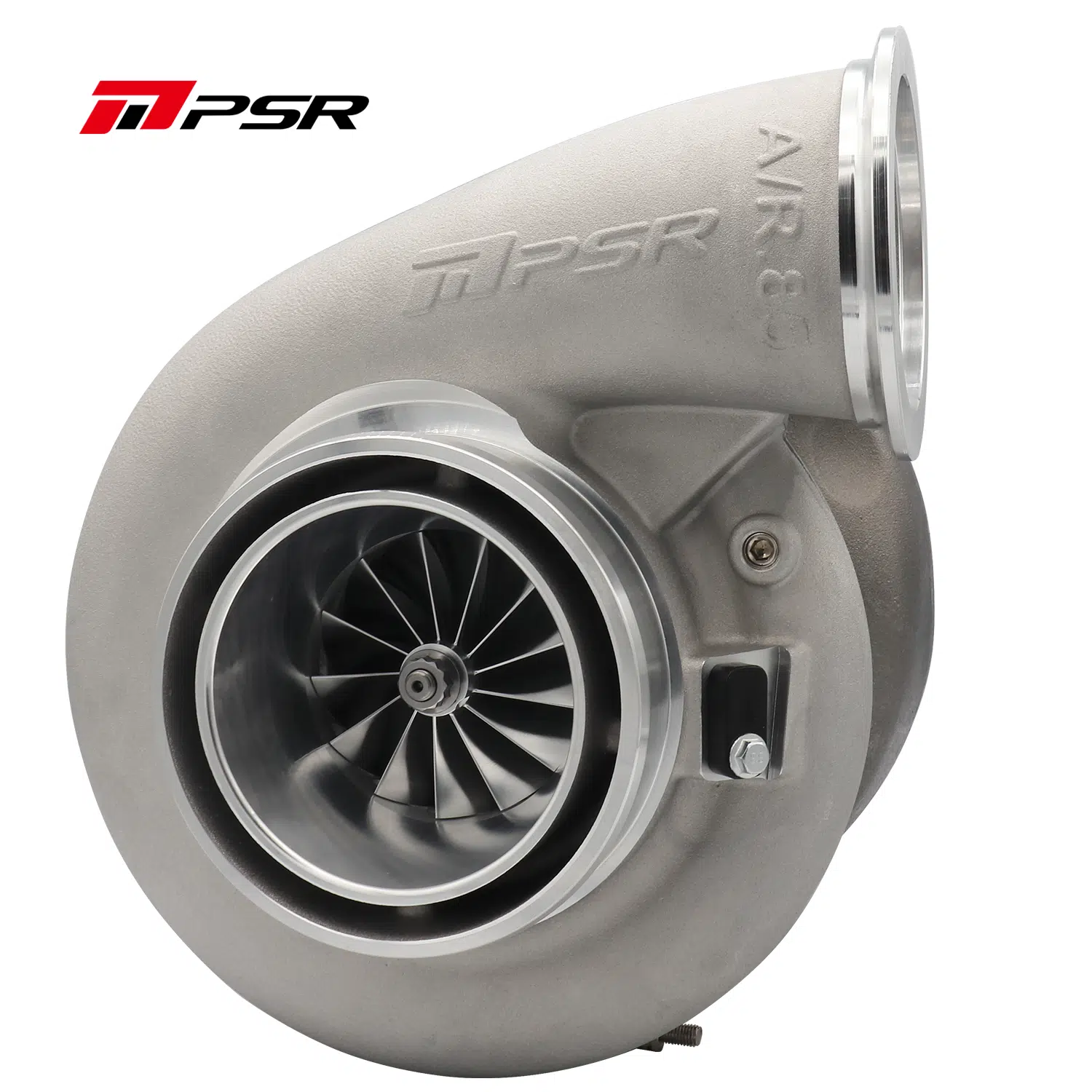

PSR 7782G Dual Ball Bearing Turbocharger HP Rating 1500

Name: PSR 7782G Dual Ball Bearing Turbocharger HP Rating 1500
SKU: 18827
Availability: InStock

$1,249.99 – $1,499.99

Compressor Housing Options

Turbine Housing Options

Clear

SKU: Categories: PSR Turbo, PTG Series

CARB And / Or EPA Compliance Testing Not Completed

ARTEK offers a wide range of performance road car product upgrades, information can be found on the different products by using the links below, further links for information can be found using the drop down menus on the navigation bar at the top of each page.

Description

Compressor Wheel: 76.6*109.2mm
Turbine Wheel: 89*81.6mm
Compressor Inlet: 5″ Hose
Compressor Outlet: 3″ V-Band
Turbine Inlet: 3″ V-Band/T4 open/ T4 divided
Water Ports: -6AN
Oil Feed Fitting(-4AN 1.65mm (0.065″) Orifice) included
Oil Drain: -12AN(O-Ring sealed Flange Kit Included)
Turbine housing option:
1. T4(Divided) inlet, Vband outlet (fits 4″ OD tubing), 1.01 A/R
2. T4(Open) inlet, Vband outlet (fits 3.5″ OD tubing), 1.15 A/R
3. T4(Divided) inlet, Vband outlet (fits 4″ OD tubing), 0.95A/R
4. T4(Divided) inlet, Vband outlet (fits 3.5″ OD tubing), 1.15 A/R
5. T4(Divided) inlet, Vband outlet (fits 4″ OD tubing), 1.28 A/R
6. T4(Divided) inlet, Vband outlet (fits 4″ OD tubing), 1.44 A/R
7. Vband inlet (fits 3″ OD tubing) and Vband outlet (fits 3.5″ OD tubing), 1.01 A/R
8. Vband inlet (fits 3″ OD tubing) and Vband outlet (fits 3.5″ OD tubing), 1.15 A/R
9. Vband inlet (fits 3″ OD tubing) and Vband outlet (fits 3.5″ OD tubing), 1.28 A/R
