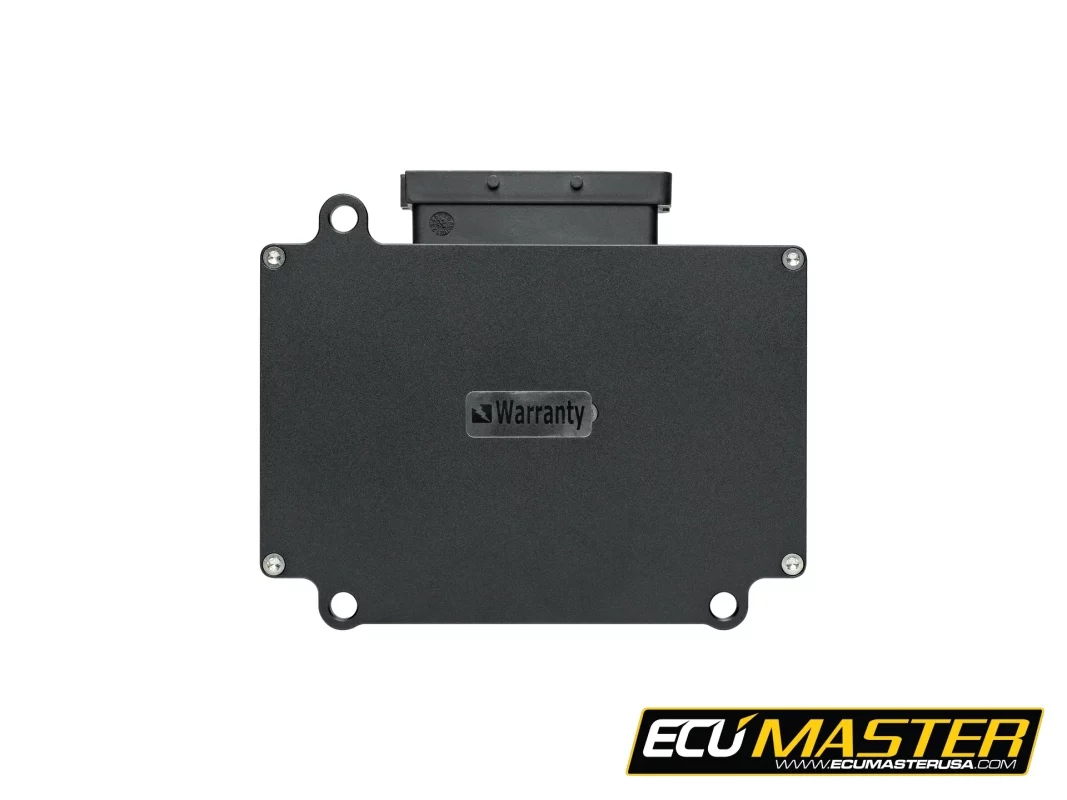

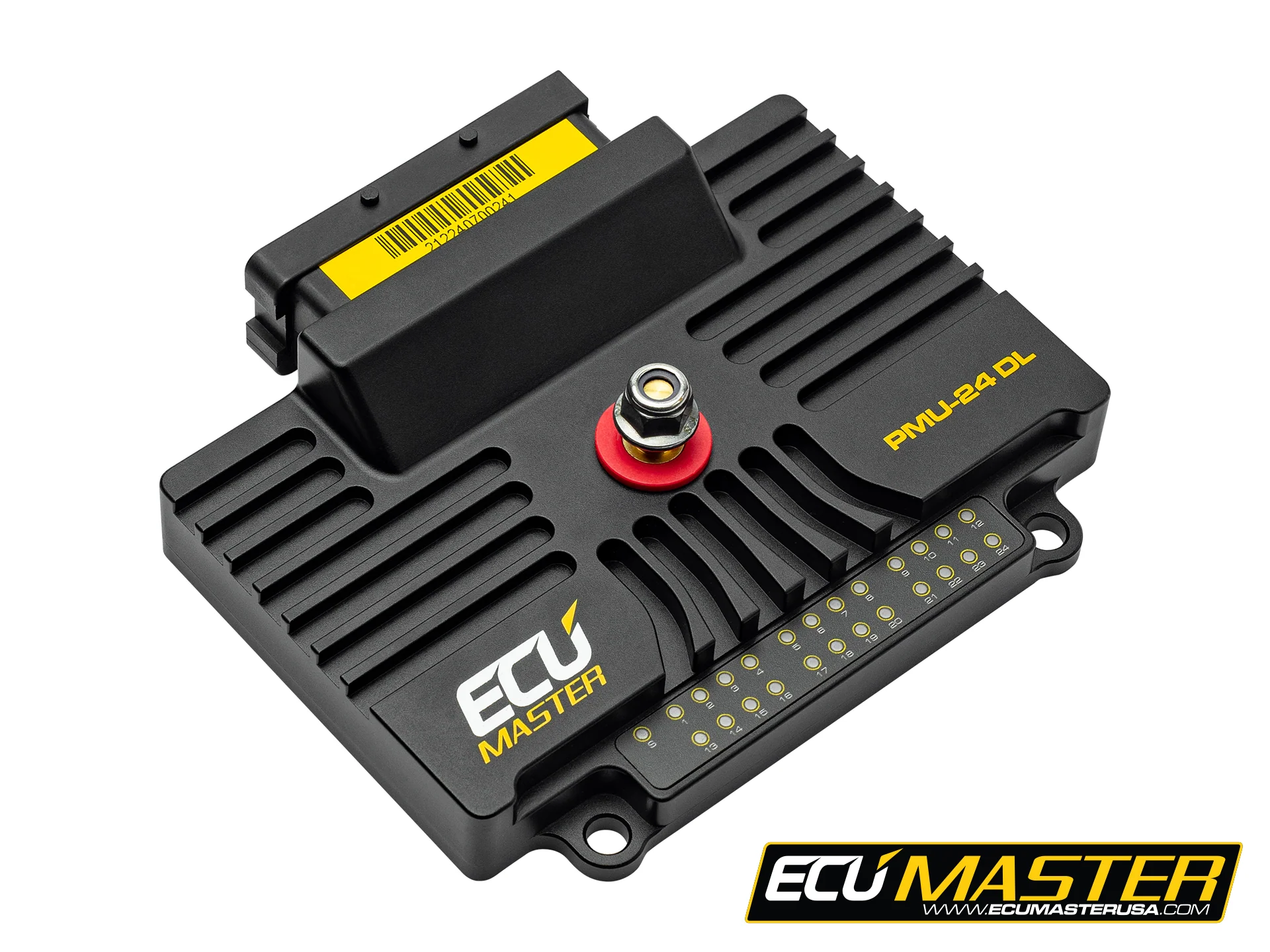

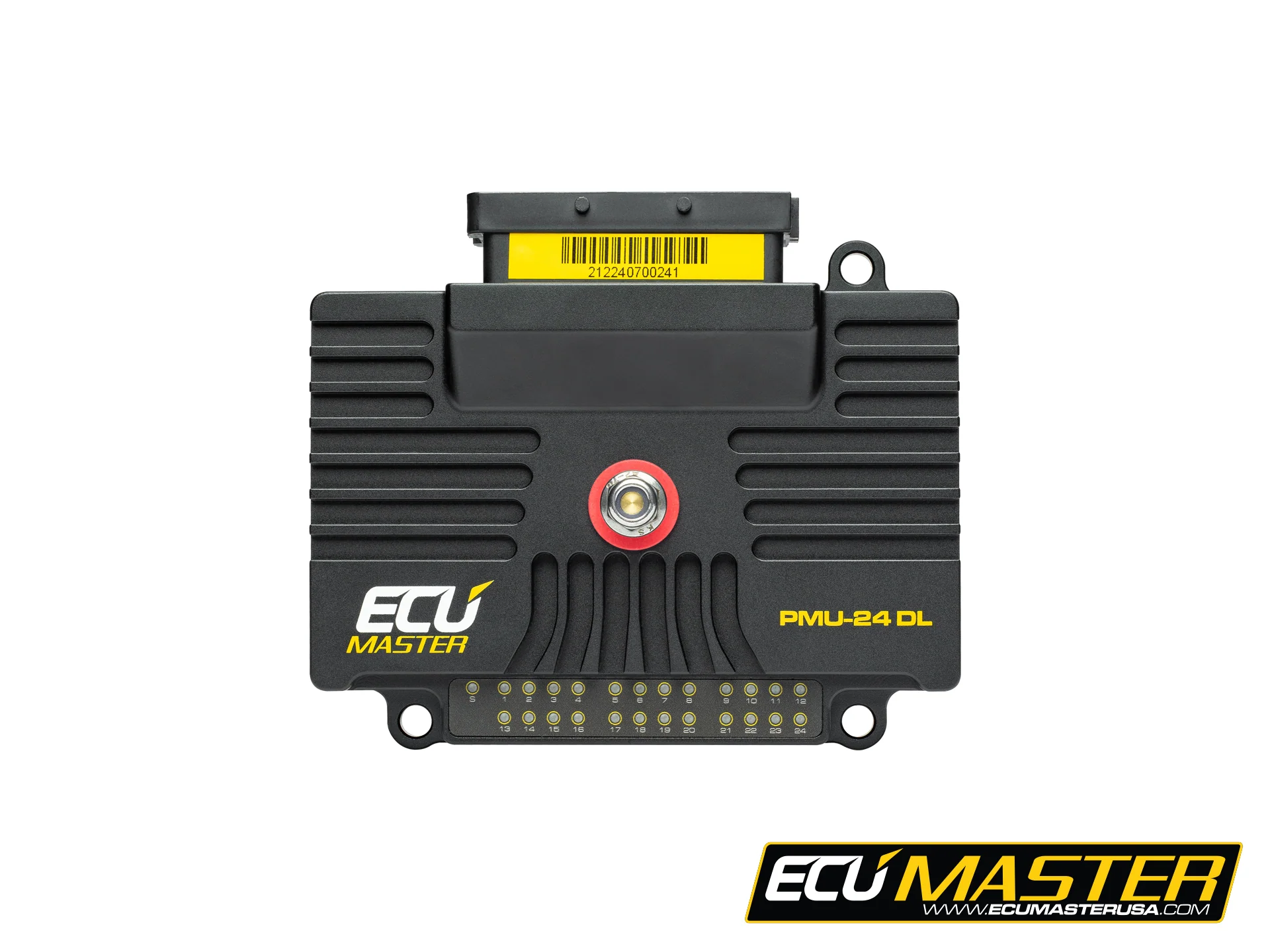

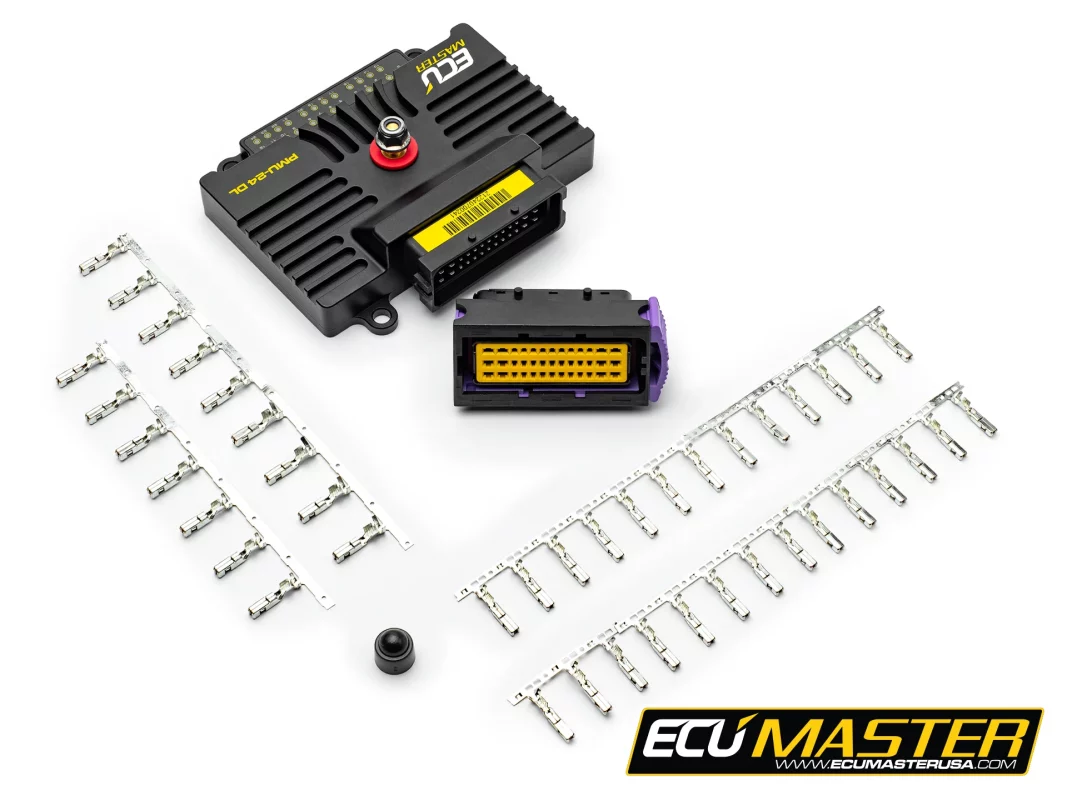

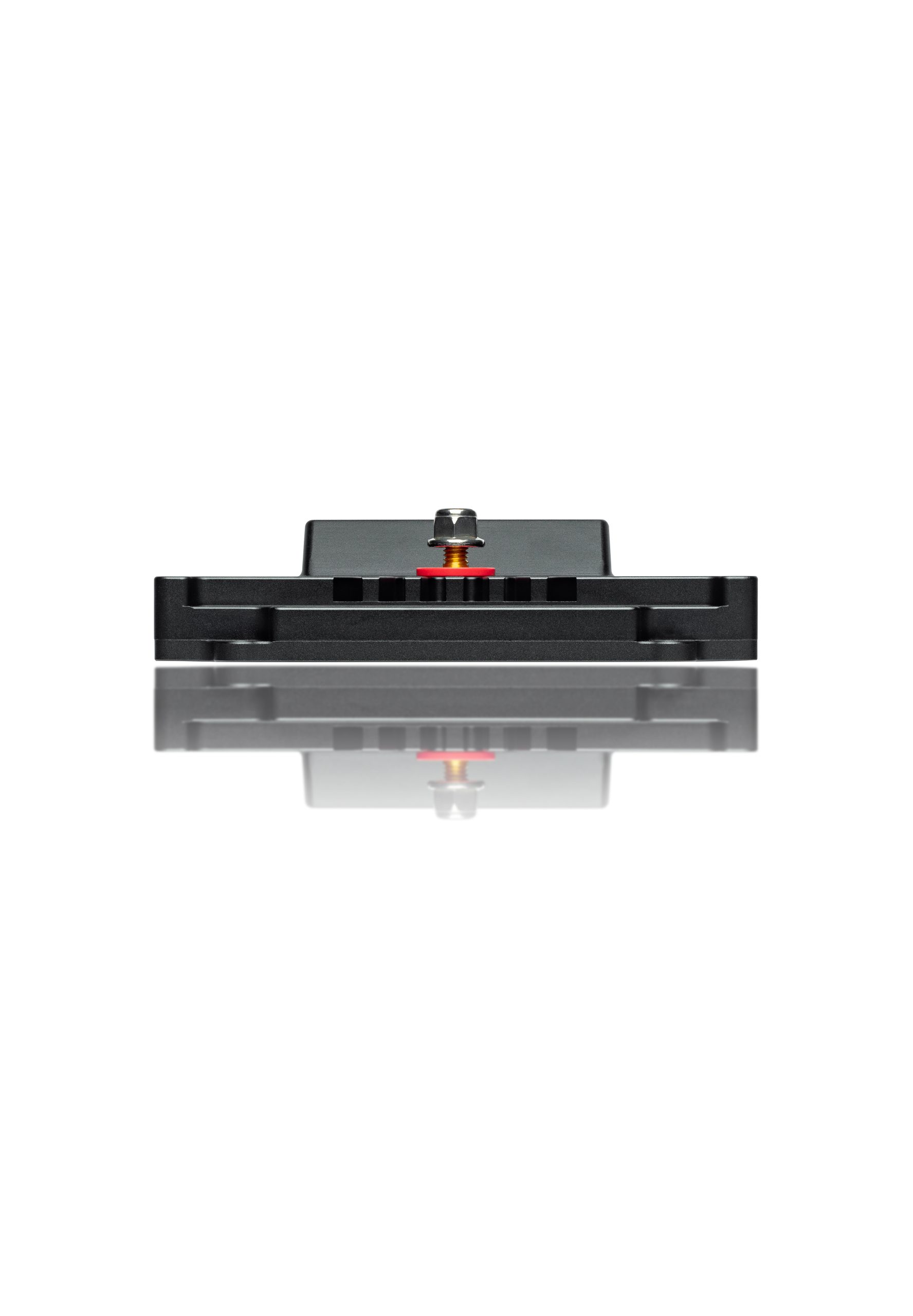

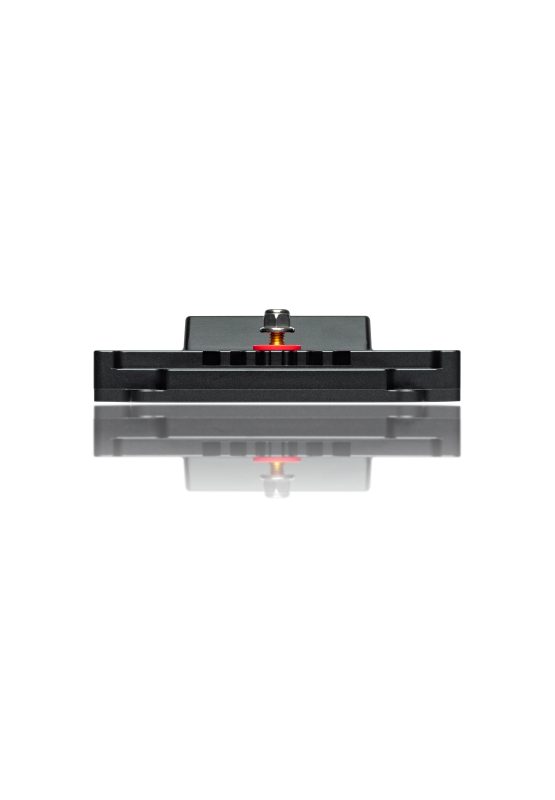

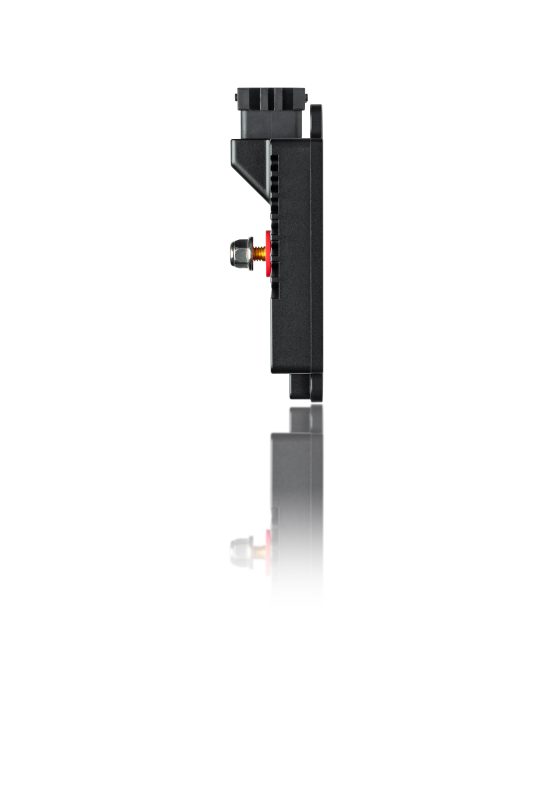

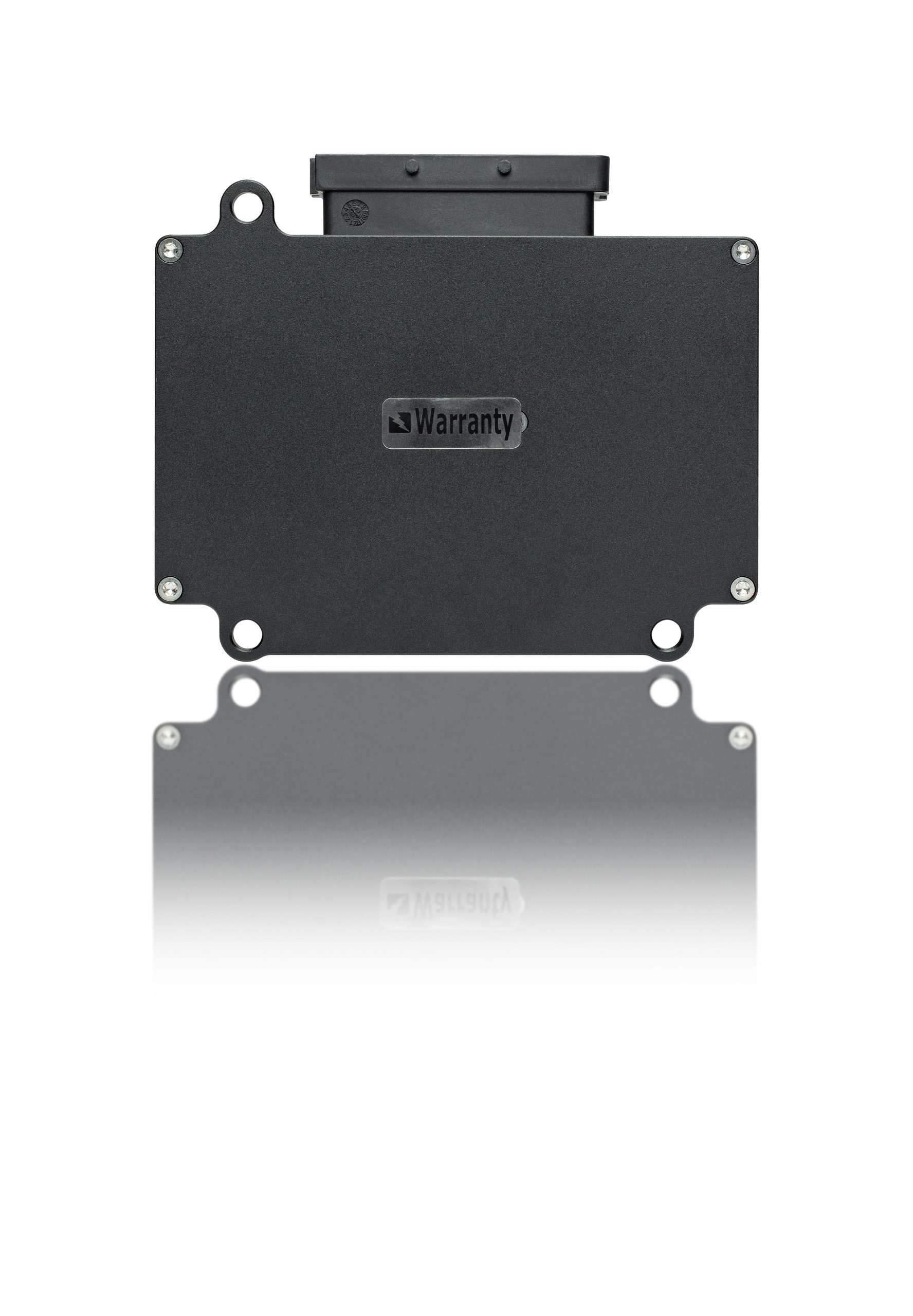

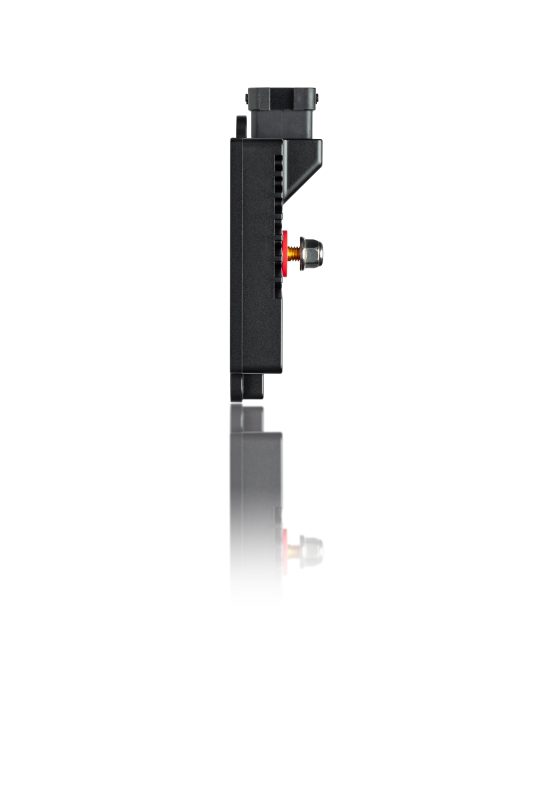

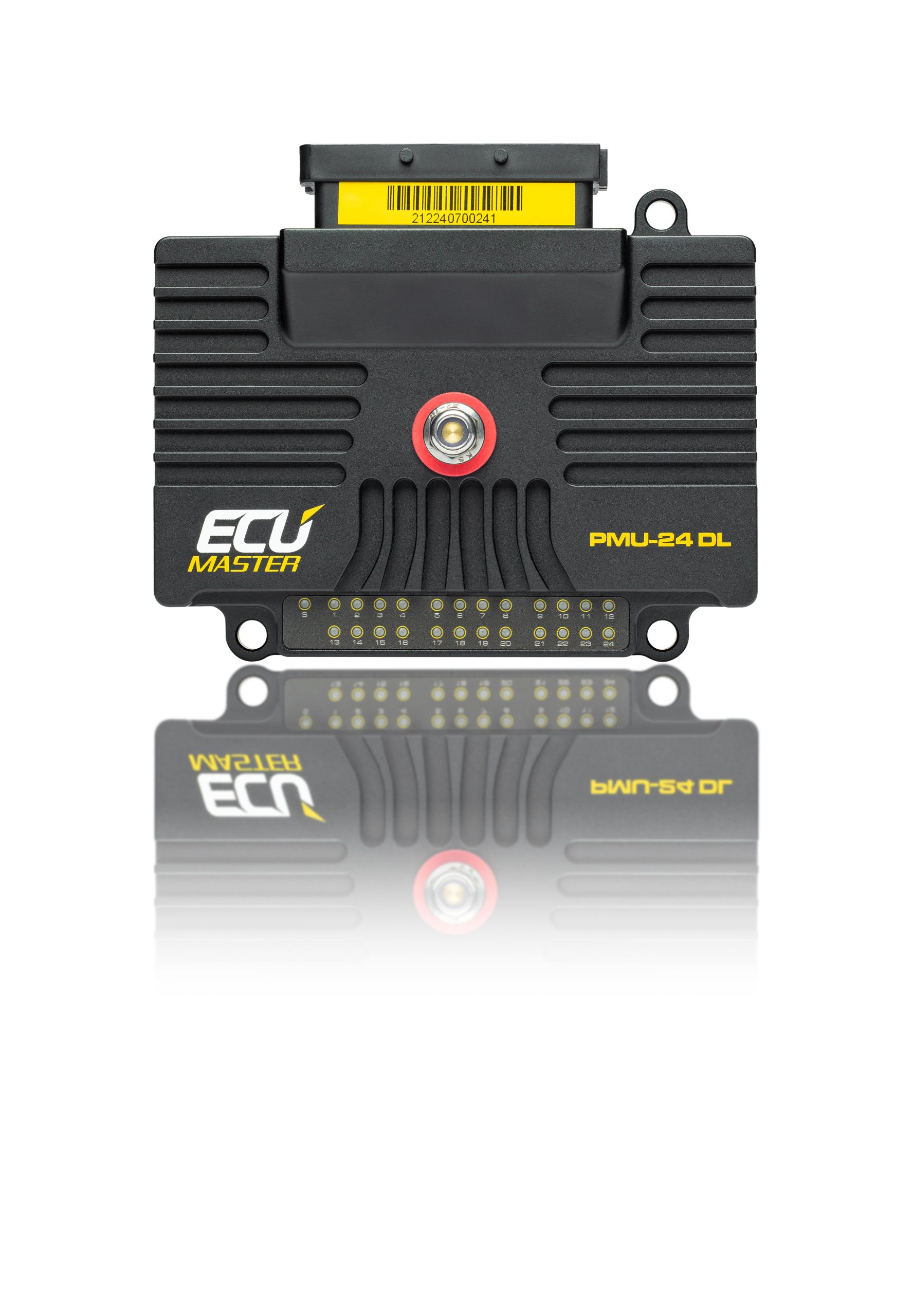

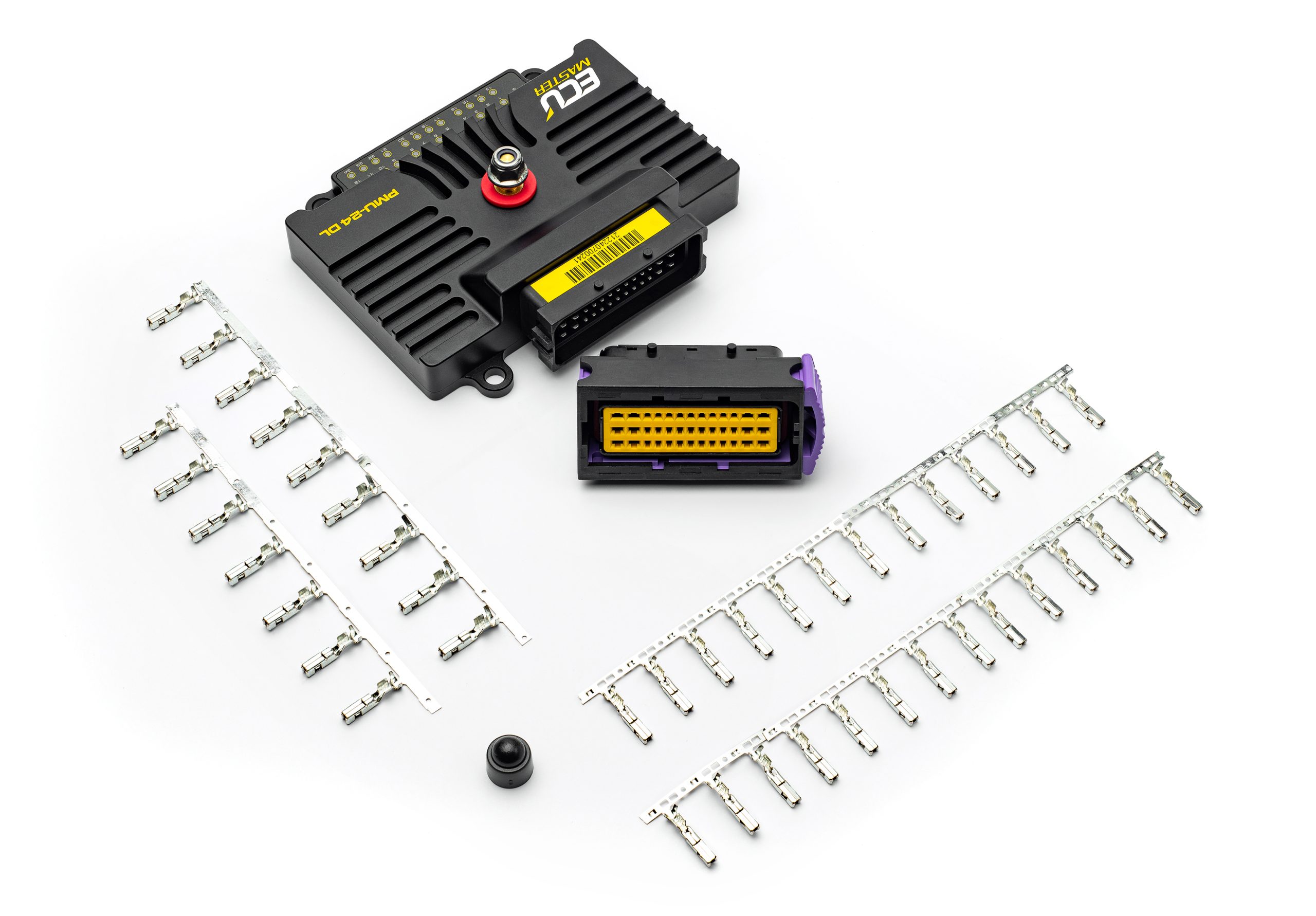

Ecumaster PMU-24 DL
$1,876.00
CARB And / Or EPA Compliance Testing Not Completed
ARTEK offers a wide range of performance road car product upgrades, information can be found on the different products by using the links below, further links for information can be found using the drop down menus on the navigation bar at the top of each page.
GENERAL |
|
| 170 Amps total continuous current. | |
| Operating voltage: 6-22V (immunity to transients according to ISO 7637) | |
| Temperature range: AECQ-100 GRADE 1, -40 to +125°C. | |
| 10x 25 Amps high-side power outputs (PWM capable). | |
| 6x 15 Amps high-side power outputs. | |
| 8x 7 Amps high-side power outputs. | |
| Up to 16 analog inputs. | |
| 24x tricolor LED for each power output state. | |
| 2x CAN 2.0 A/B. | |
| 256 MB data logger memory. | |
| Up to 500 Hz logging frequency. | |
| Real-time clock for data stamping. | |
| 3D accelerometer/gyroscope. | |
| Built-in “inertia switch” in case of an accident. | |
| Easy access to CAN-bus data (imports and exports). | |
| Internal data processing using logical functions, numbers, timers, and tables. |
|
| Custom PID controllers. | |
| Fully customizable ”logic” for each output. | |
| Flexible and intuitive client software. | |
| Dimensions: 131x112x33mm, weight 385g | |
