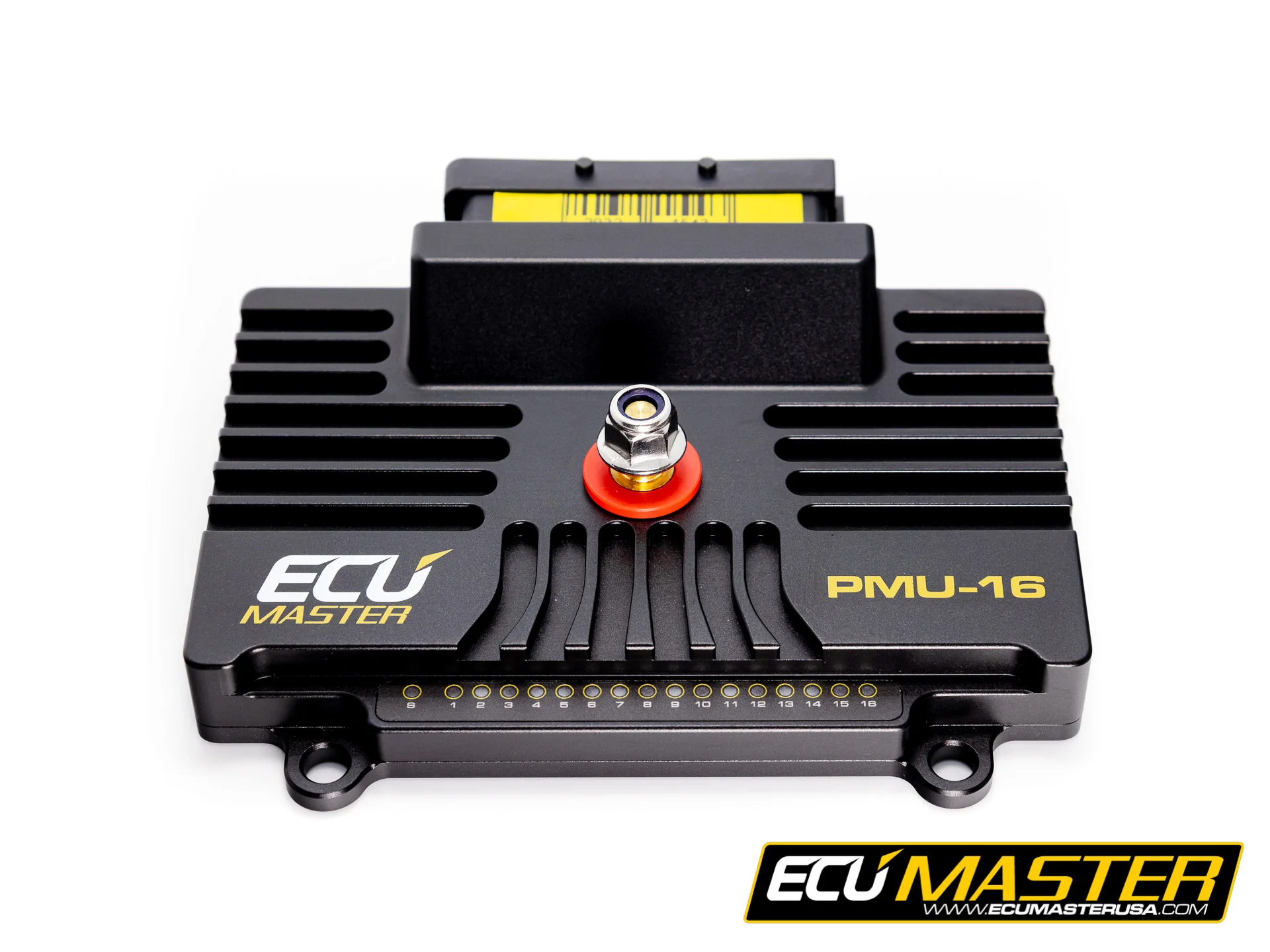

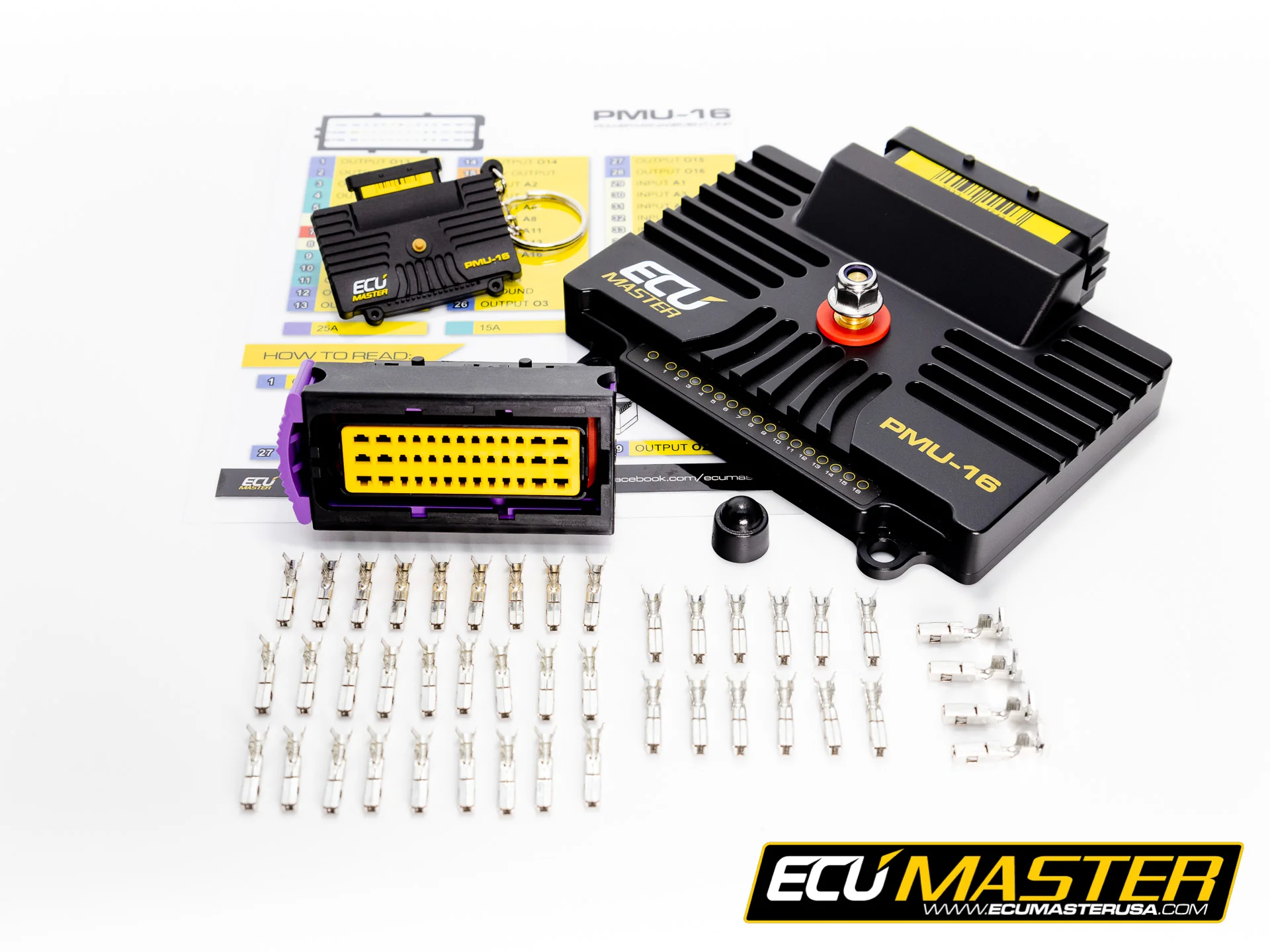

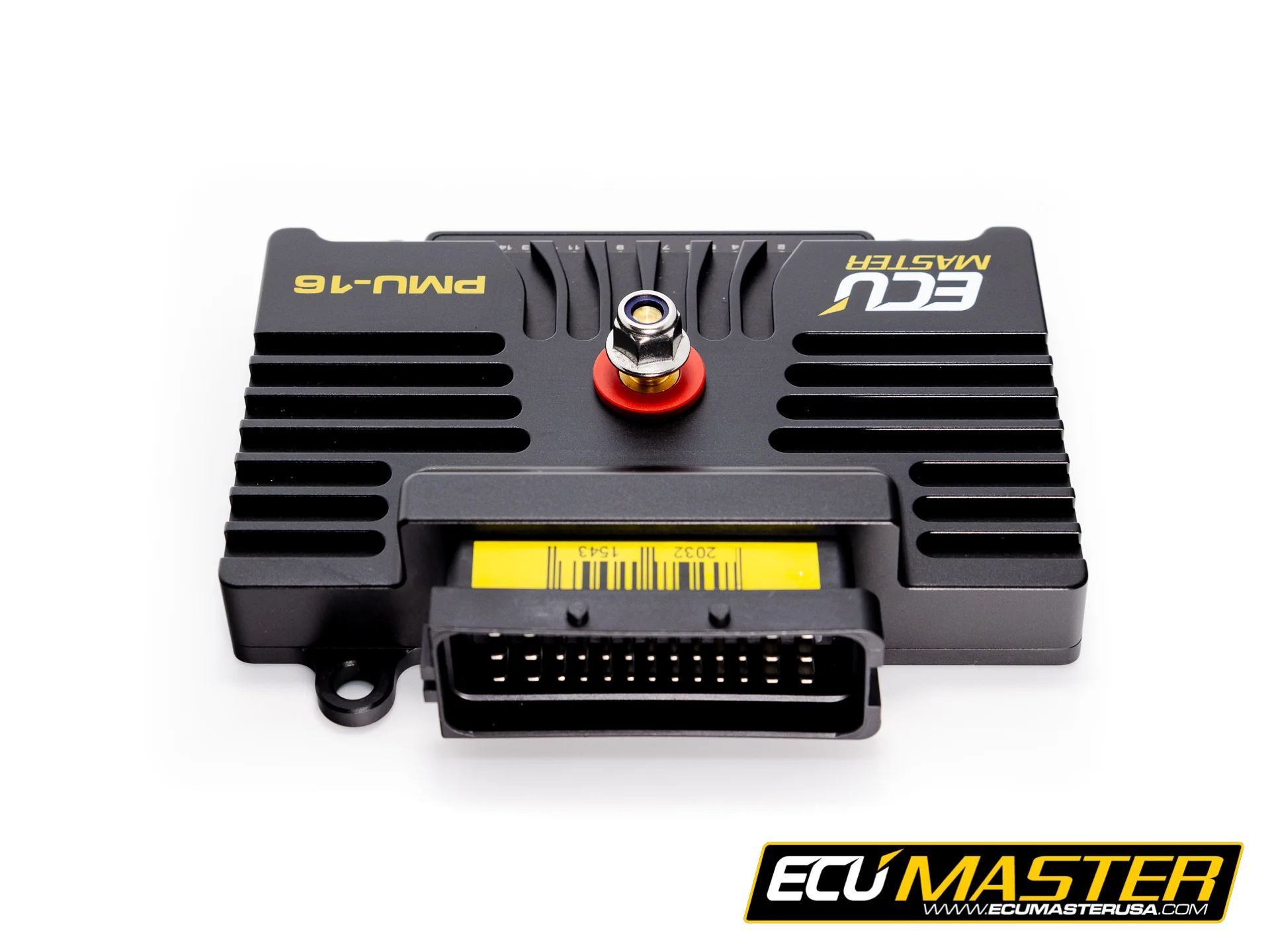

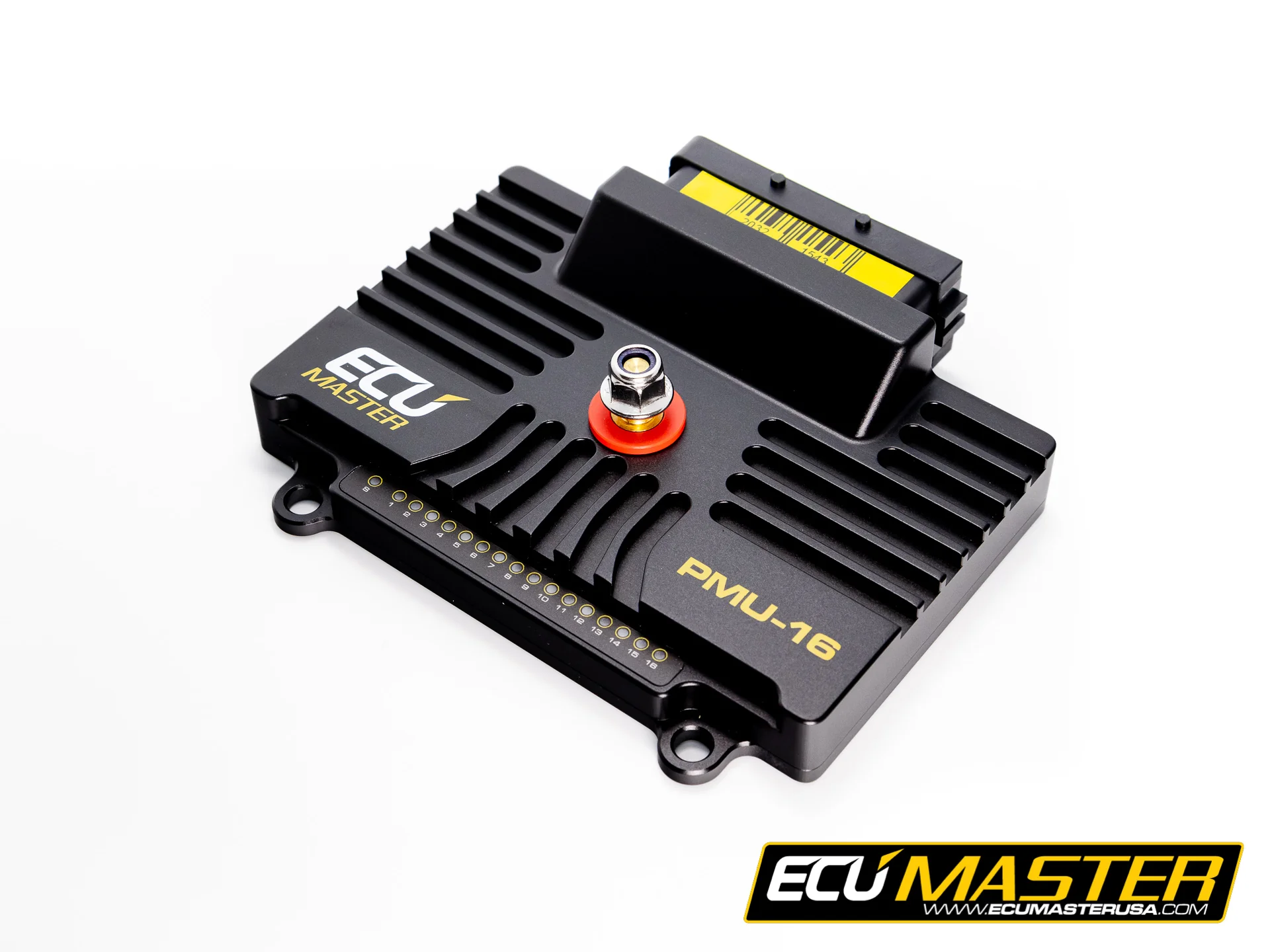

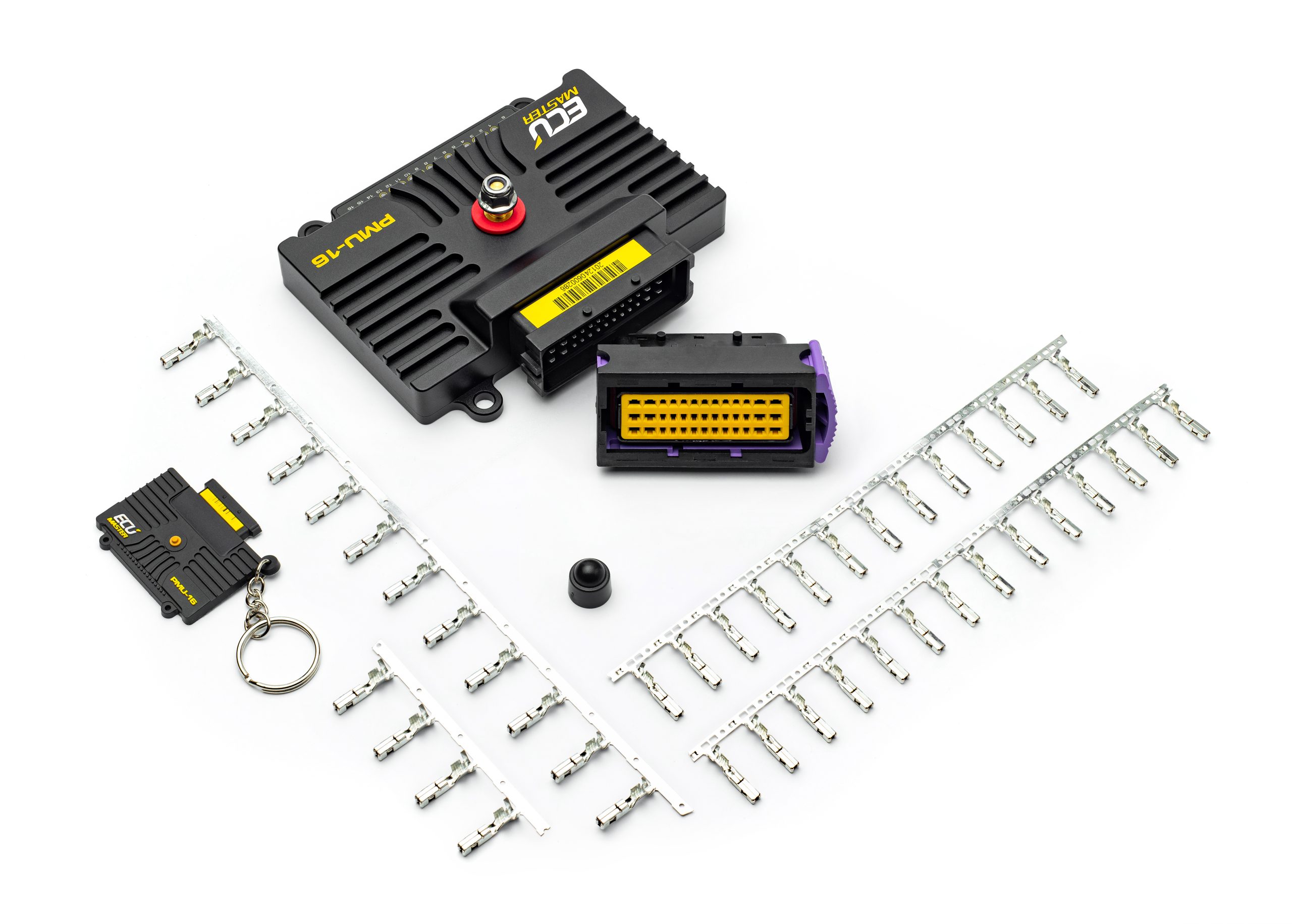

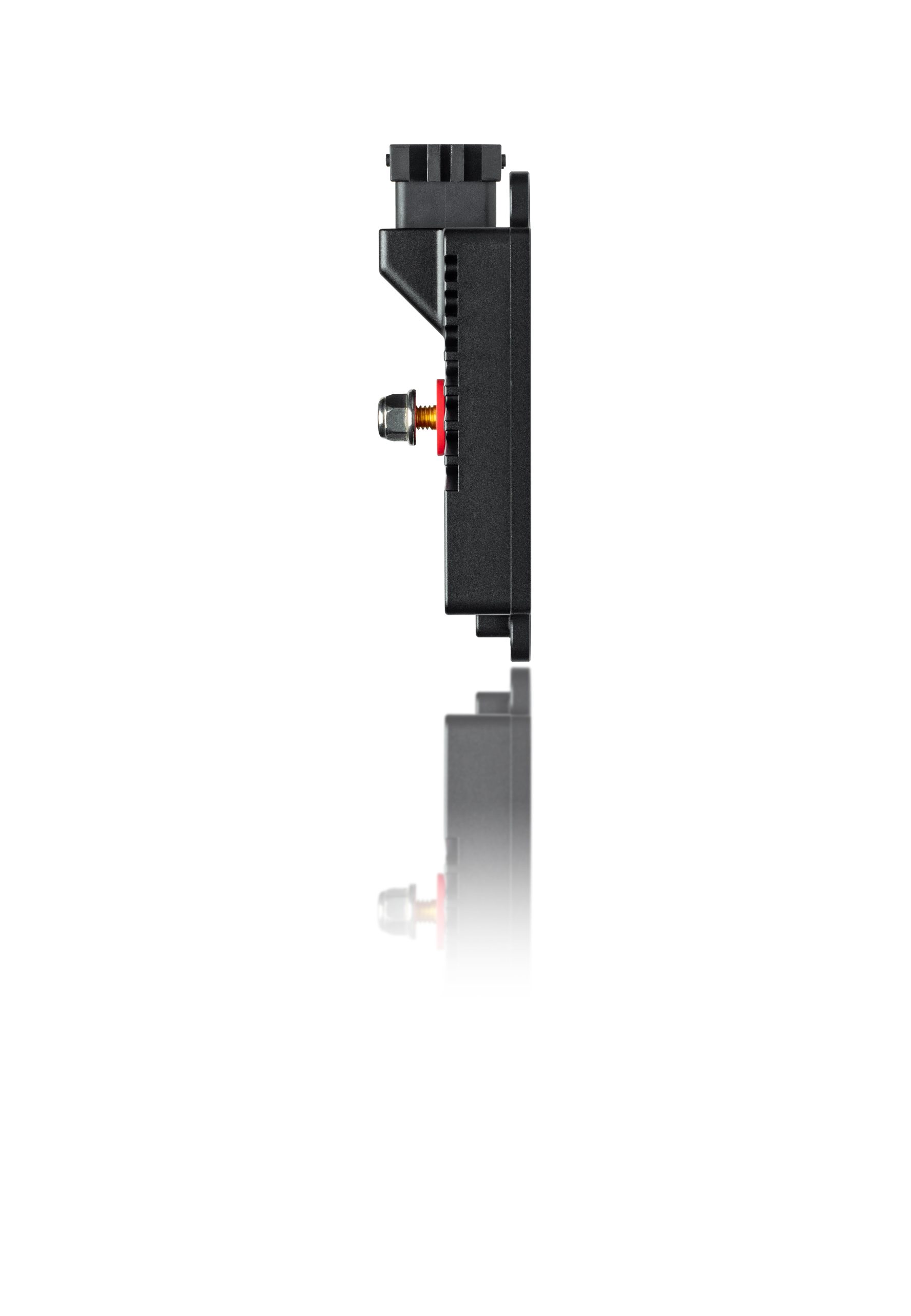

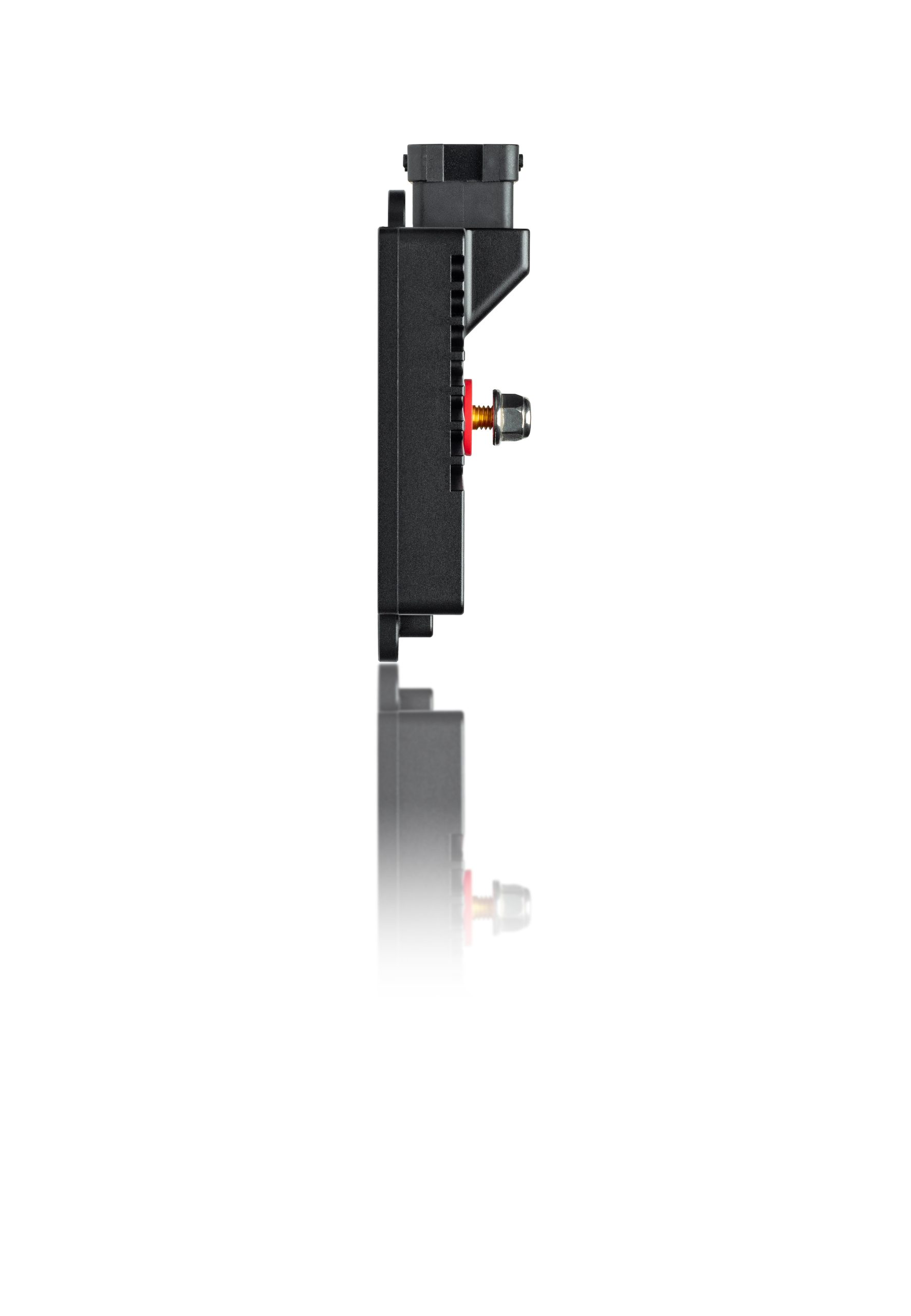

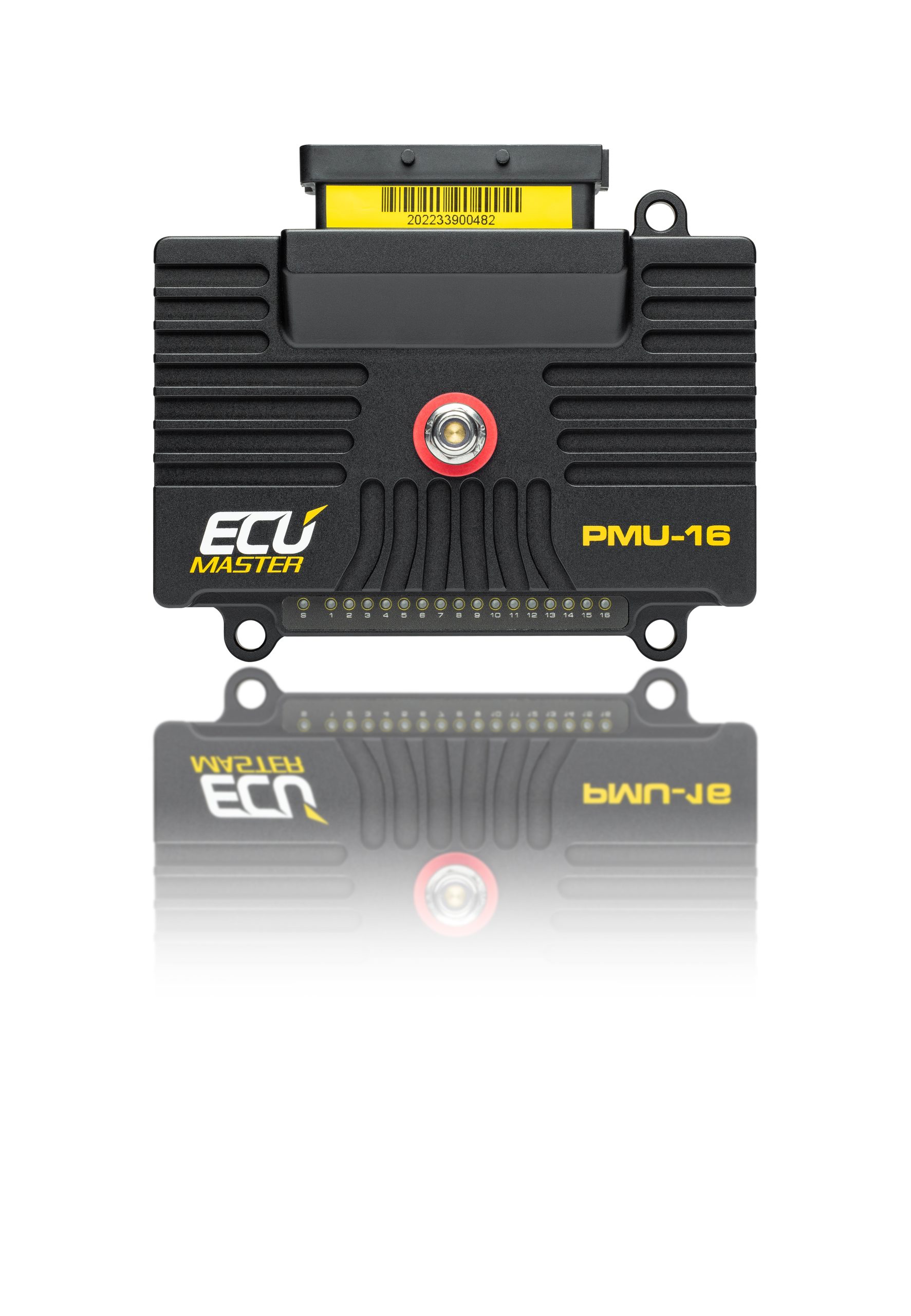

Ecumaster PMU-16
$1,405.00
CARB And / Or EPA Compliance Testing Not Completed
ARTEK offers a wide range of performance road car product upgrades, information can be found on the different products by using the links below, further links for information can be found using the drop down menus on the navigation bar at the top of each page.
GENERAL |
|
Temperature range | AECQ100 GRADE1 (-40 to +125˚C) |
CPU | 32 bits automotive, 90MIPS |
Operating voltage | 6-22V, immunity to transients according to ISO 7637 |
Enclosure | IP 60, bespoke CNC machined aluminium |
Size (mm) and weight(g) | 131x112x32.5, 370g |

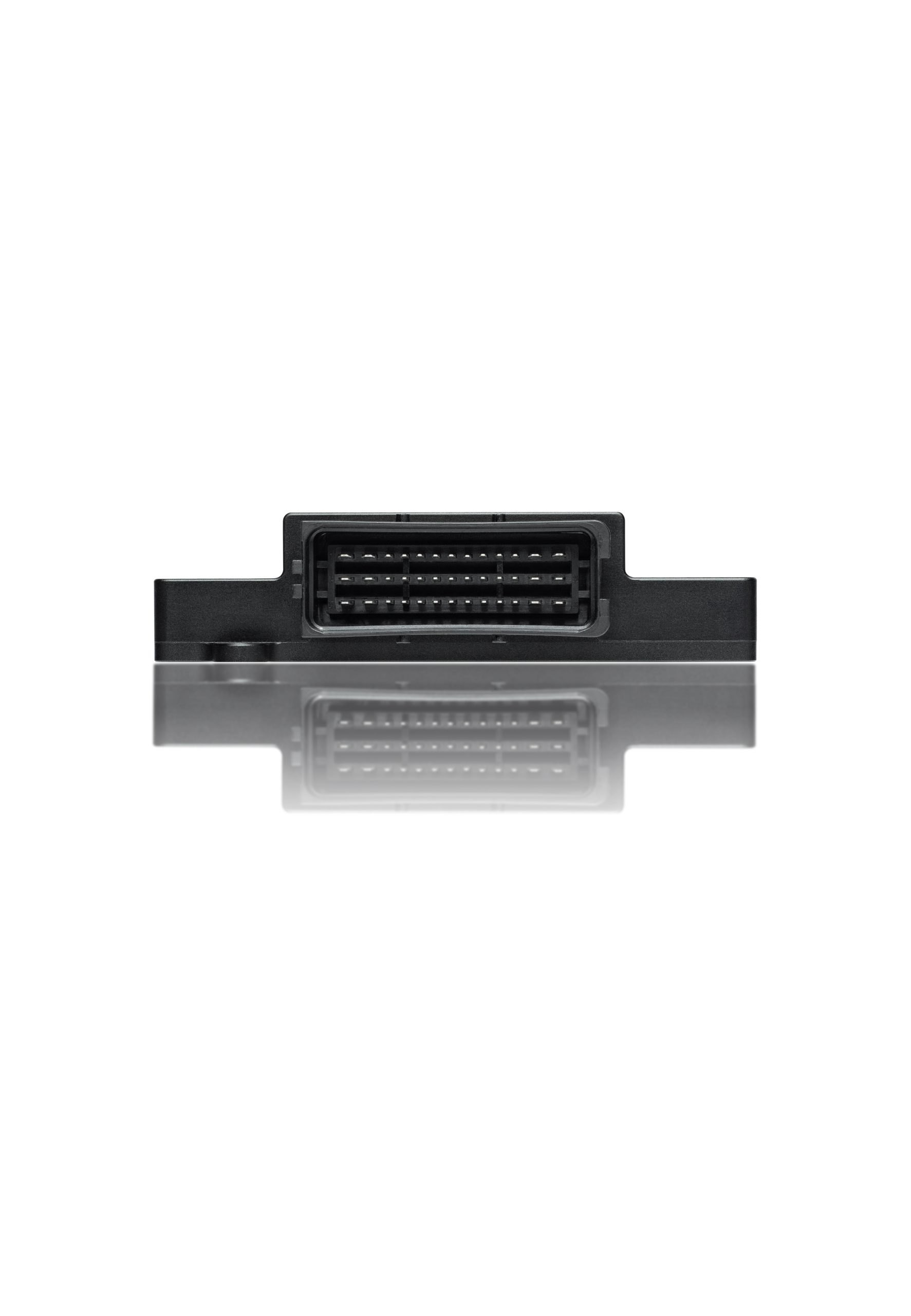

Connectors | 1 x 39 Automotive connector,

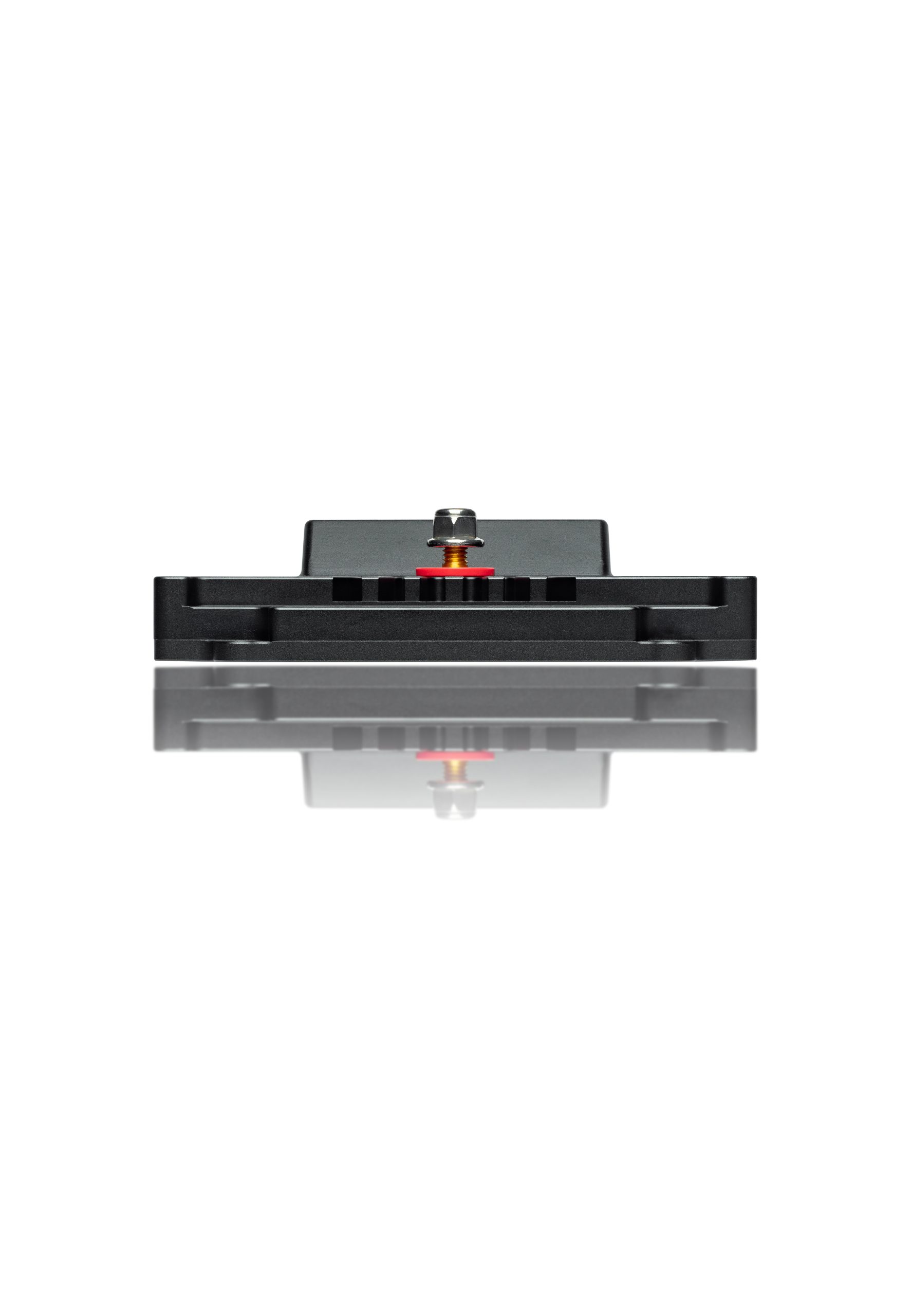

1 x M6 stud for battery connection |
PC communication | CAN (ECUMASTER USBtoCAN, PEAK CAN, KVASER) |
OUTPUTS |
|
High current outputs | 10 x 25A(cont.), 6 x 15A(cont.) with overcurrent and overheating protection. Outputs may be paired to increase continuous current capability. Current and voltage is measured for each output |
Total current output | 150A continuous |
Output current control step | 100mA |
Wipers output | Dedicated output with wiper braking feature |
+5V | Monitored 5V, 500mA output for powering external sensors. |
INPUTS |
|
Analog inputs | 16 inputs, 10 bit resolution, 0-5V (protected), with software selectable 10K Ohm pullup and pulldowns |
CAN Keypads | 2 x Ecumaster keypads (4, 6, 8, 12 keys) |
OTHER |
|
Output state indication | 16 bicolour LEDs |
Accelerometer/Gyroscope | 3D accelerometer with 3D gyroscope for logging and crash detection |
Real time clock | Yes, super capacitor for backup power (up to 3 days) |
CAN BUS |
|
CAN interface | 2 x CAN2.0 A/B |
CAN standard | CAN2.0 A/B – 125, 250, 500, 1000 kbps |
Input/output stream | User defined with bit masking,
up to 100 input messages |
LOGGING* |
|
Logging memory | 256 Mbytes |
Logging speed | Variable, defined per channel, up to 500Hz |
*Only in PMU-16 DL version. | |
FUNCTIONS |
|
Logical operations | AND, OR, NOT, XOR, >, <, =, >=, <=, !=, isTrue, isFalse, Toggle, Flash, Pulse |
Number of functions | 100 |
Number of operations | 250 |
Update frequency | 500Hz |
Special functions | Wipers, Indicators |
