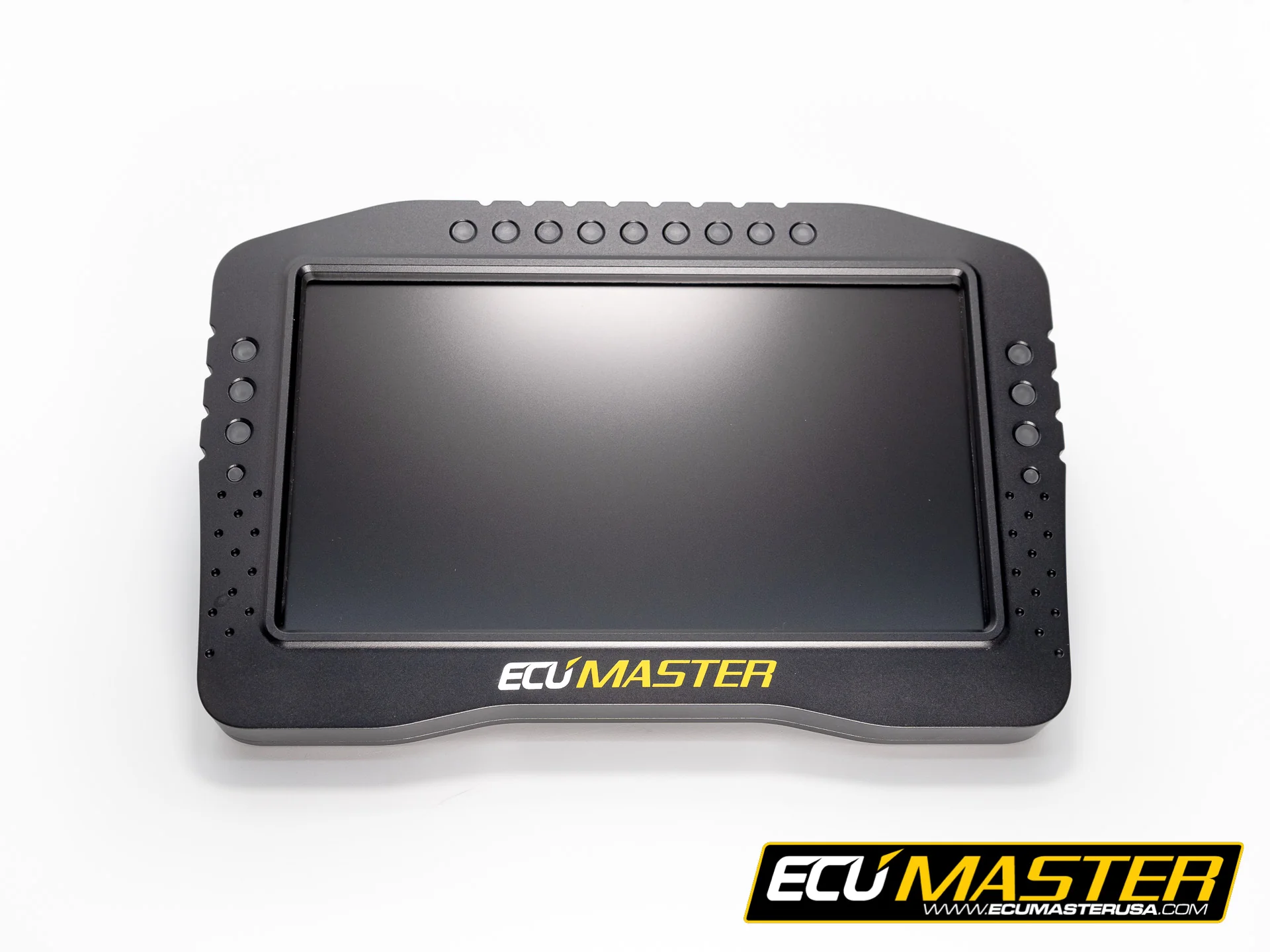

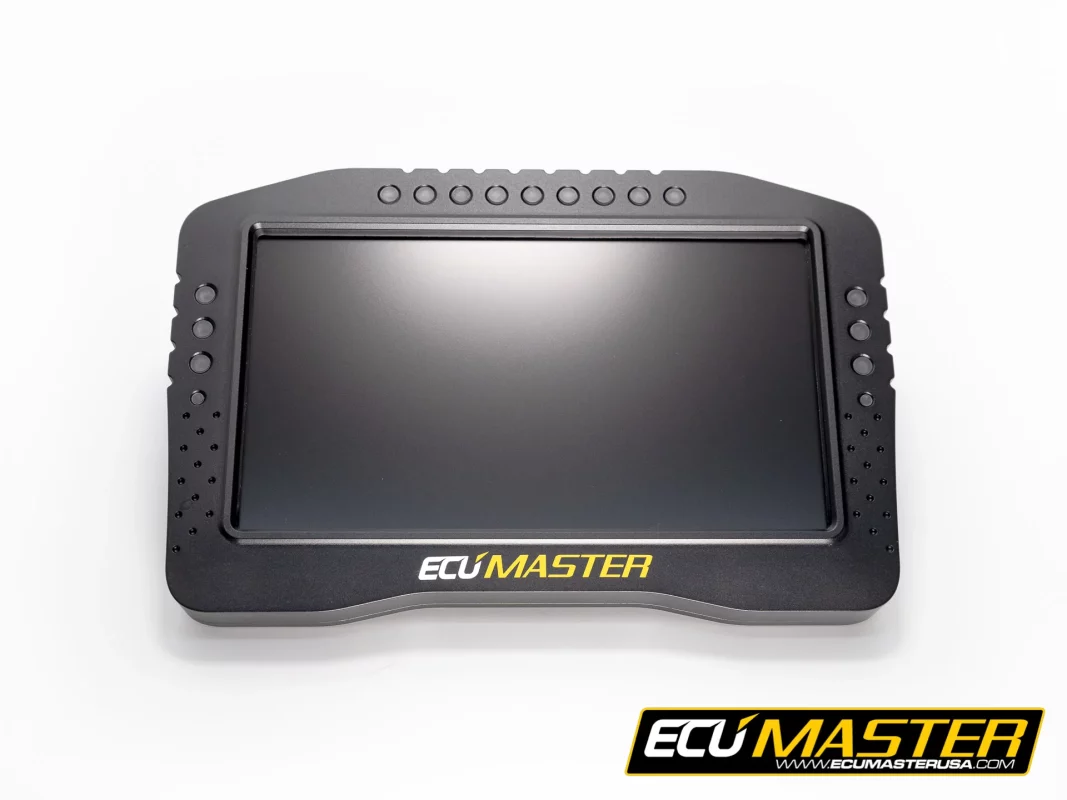

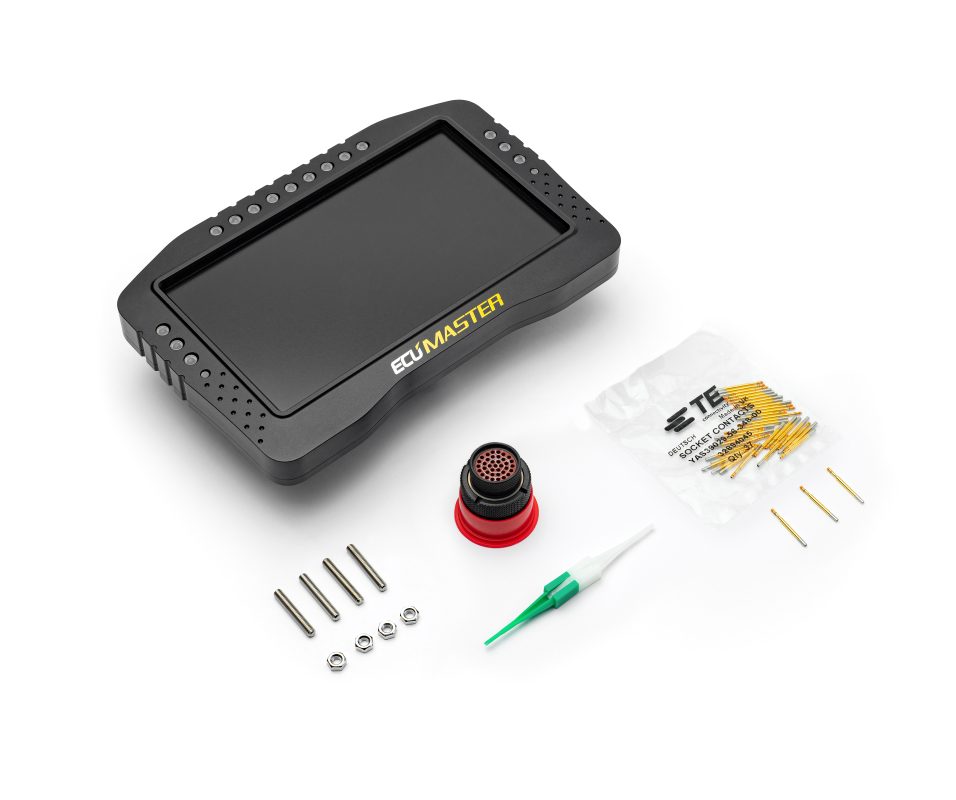

Ecumaster ADU -7” Rev.2

$1,724.00

SKU: Categories: Ecumaster

CARB And / Or EPA Compliance Testing Not Completed

     ARTEK offers a wide range of performance road car product upgrades, information can be found on the different products by using the links below, further links for information can be found using the drop down menus on the navigation bar at the top of each page.



GENERAL

Temperature range AECQ100 GRADE3 (-40 to +85˚C)
Reverse battery protection Yes, internal
Operating voltage 6-22V, immunity to transients according to ISO 7637
Enclosure Rev.1 ->IP 60, custom CNC machined aluminum

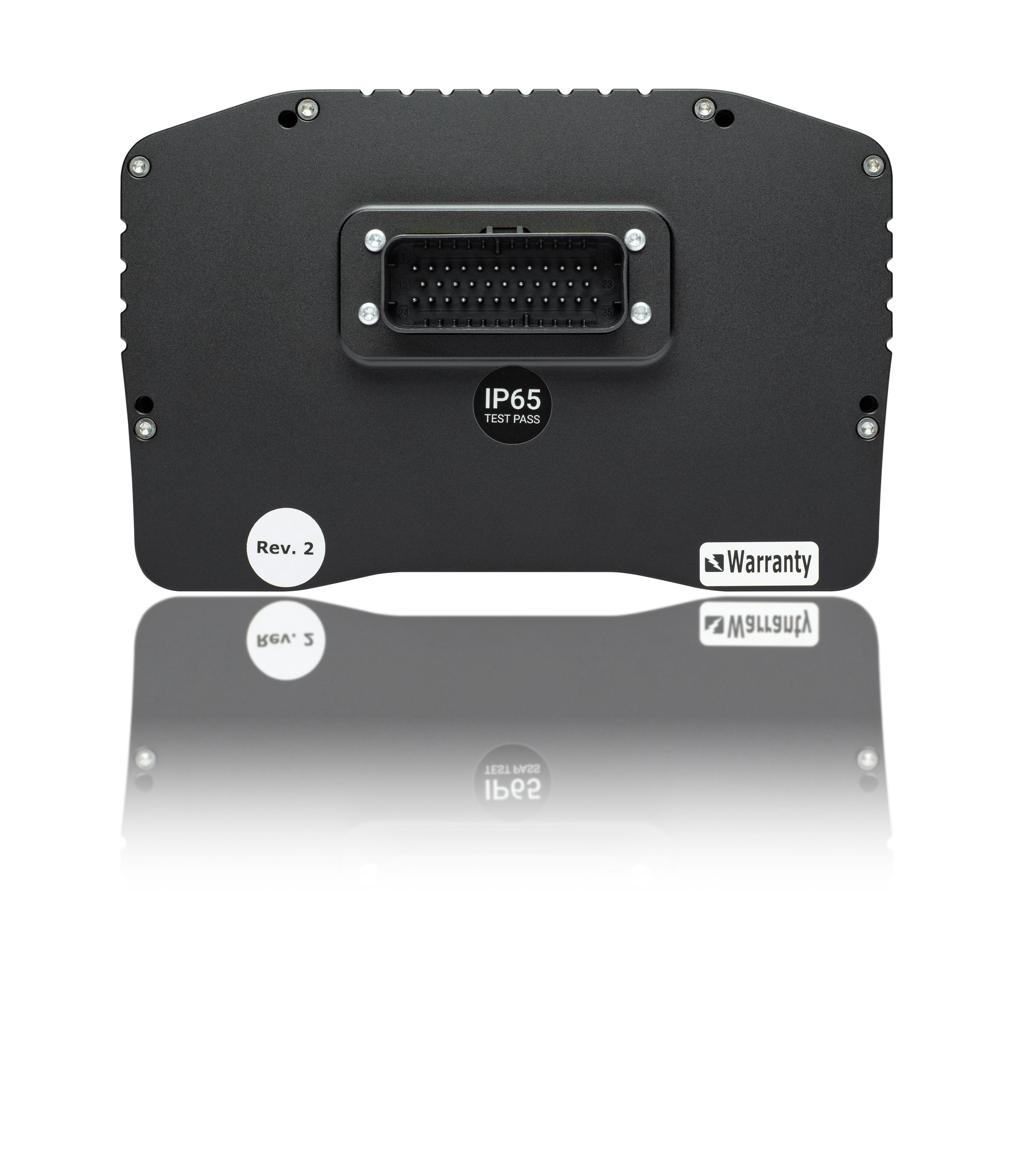

Rev.2 ->IP 65, custom CNC machined aluminum (sealed)

ADU7″ AS ->IP 60, custom CNC machined aluminum

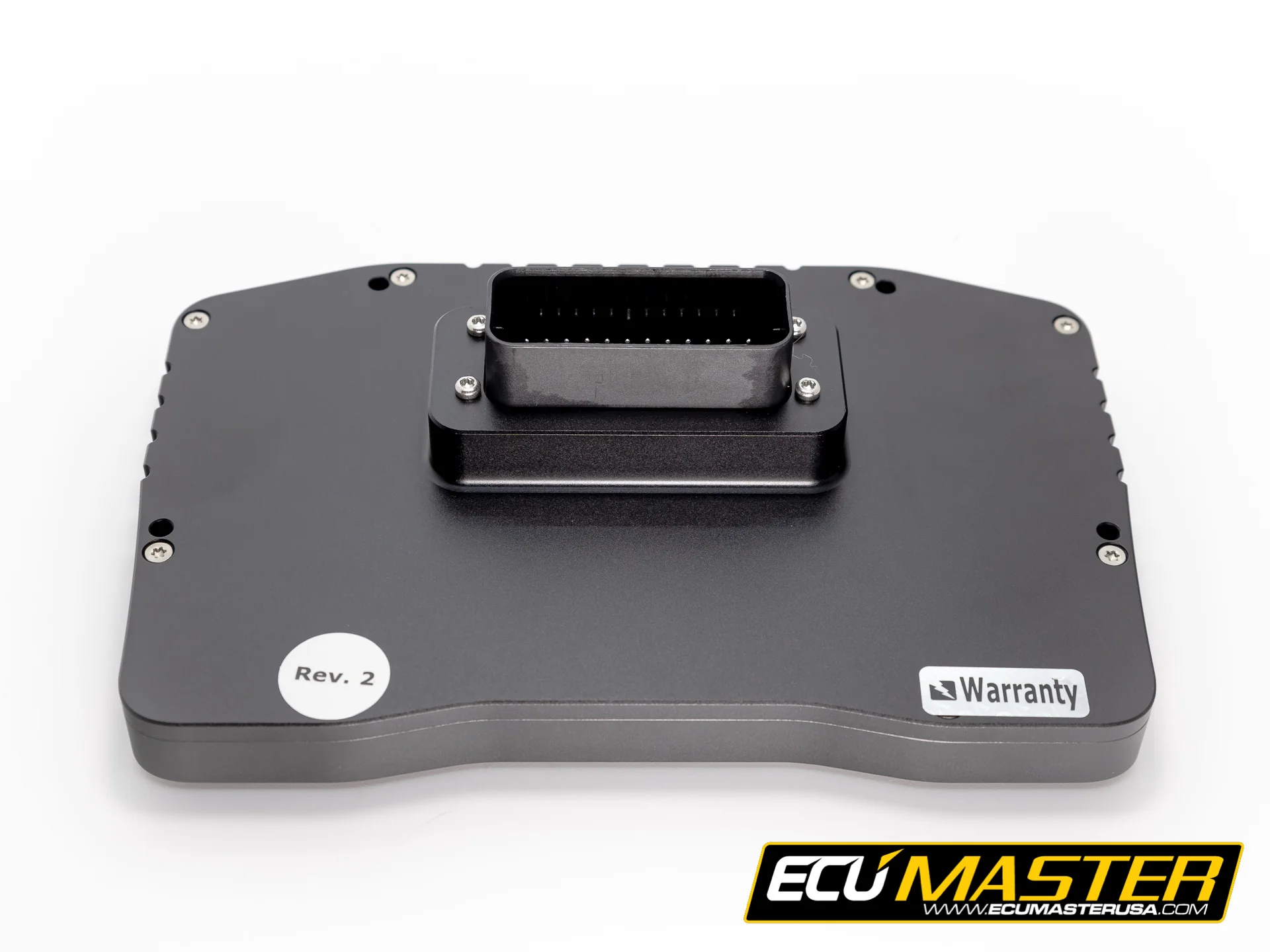

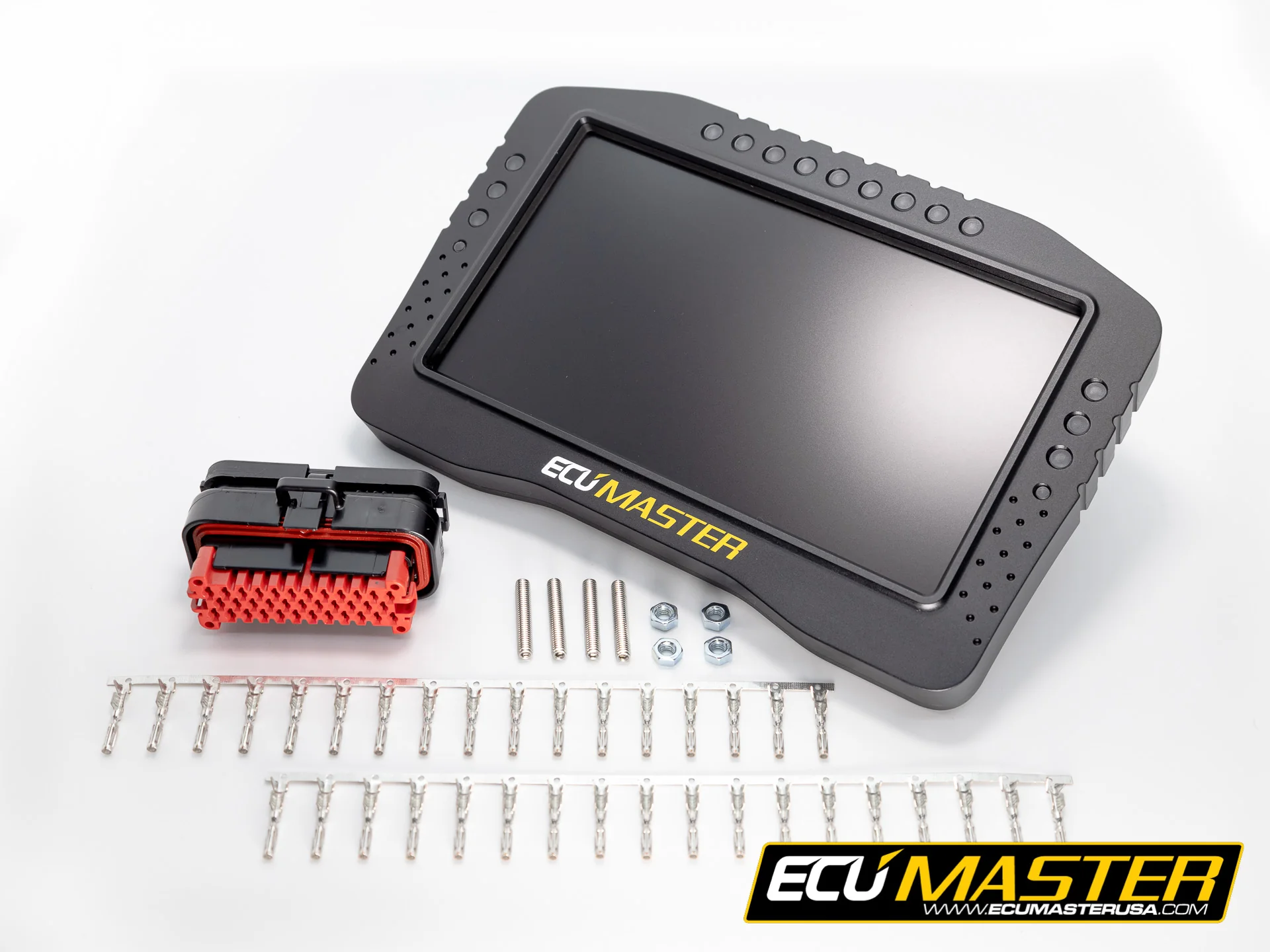

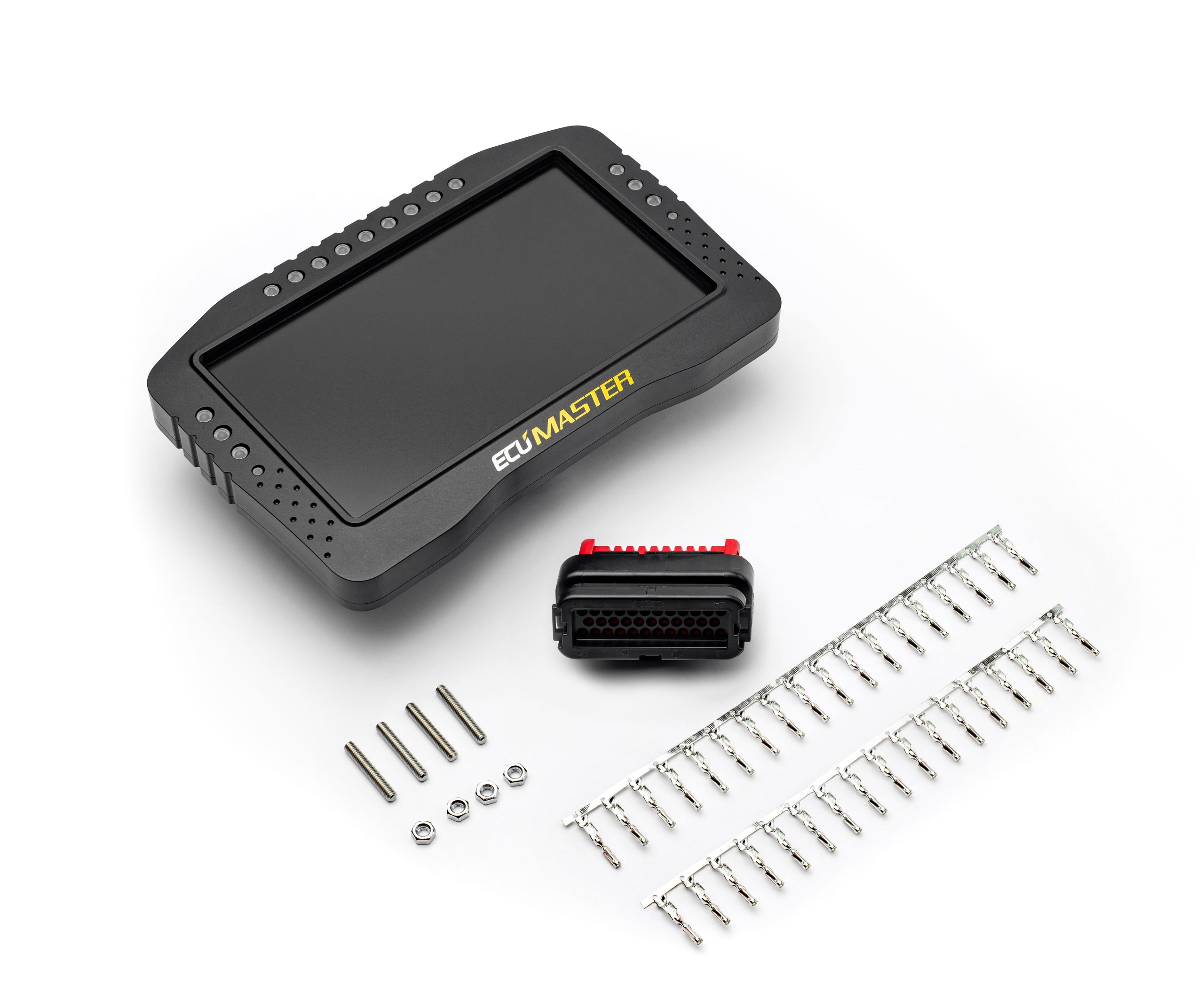

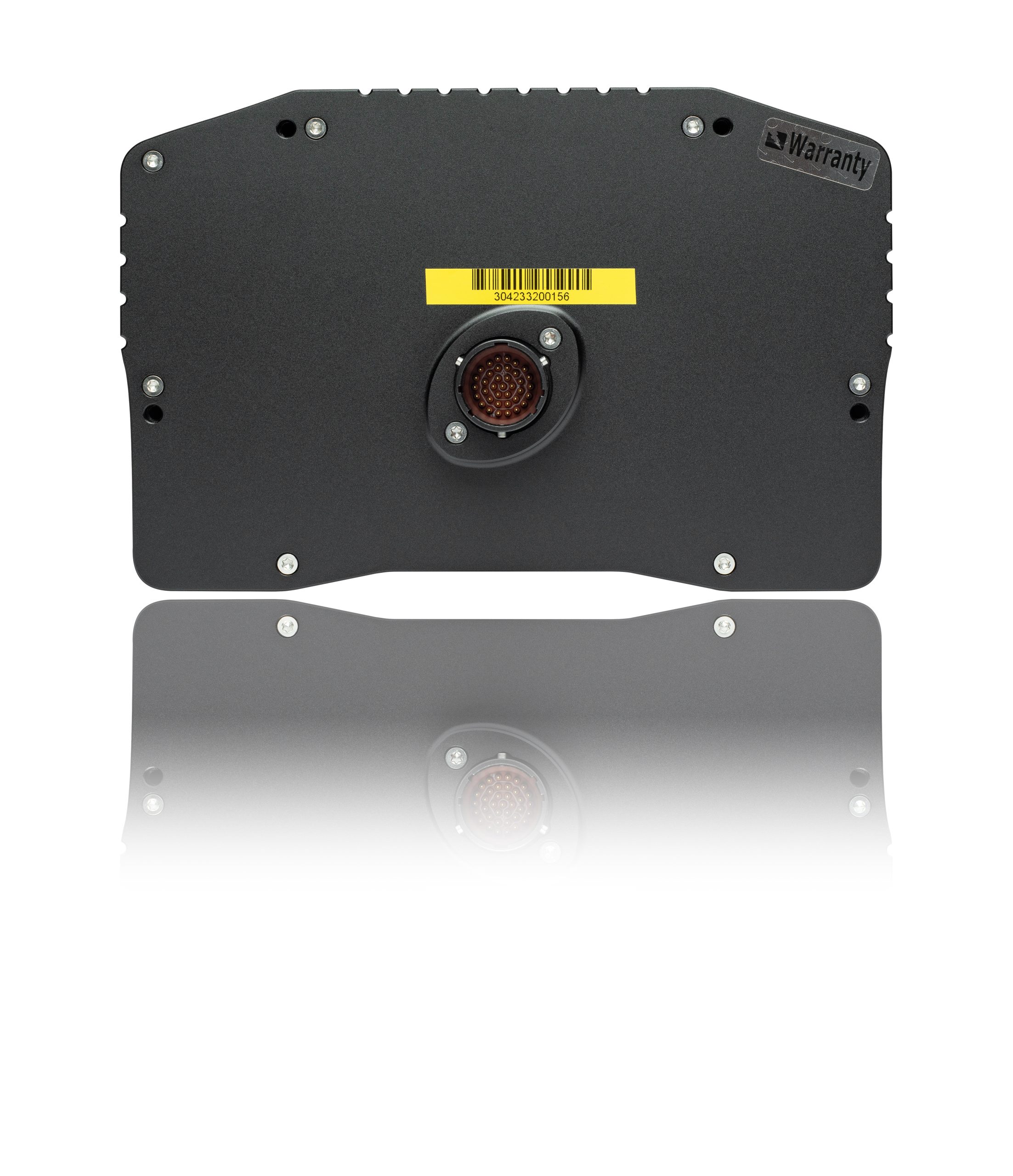

Connectors 1 x 35 positions, AMP Automotive connector
PC communication CAN BUS – Ecumaster interface, Peak or Kvaser

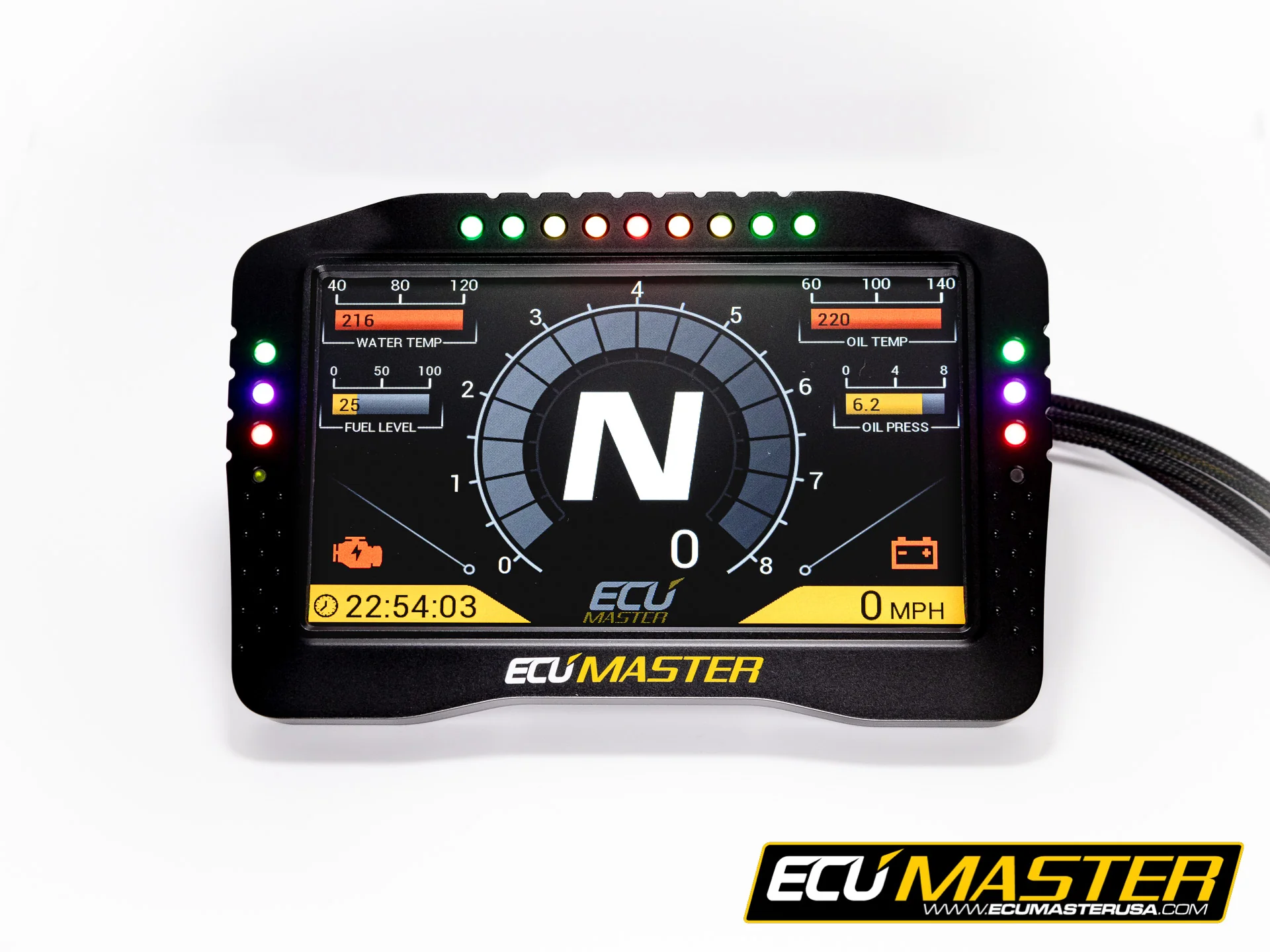

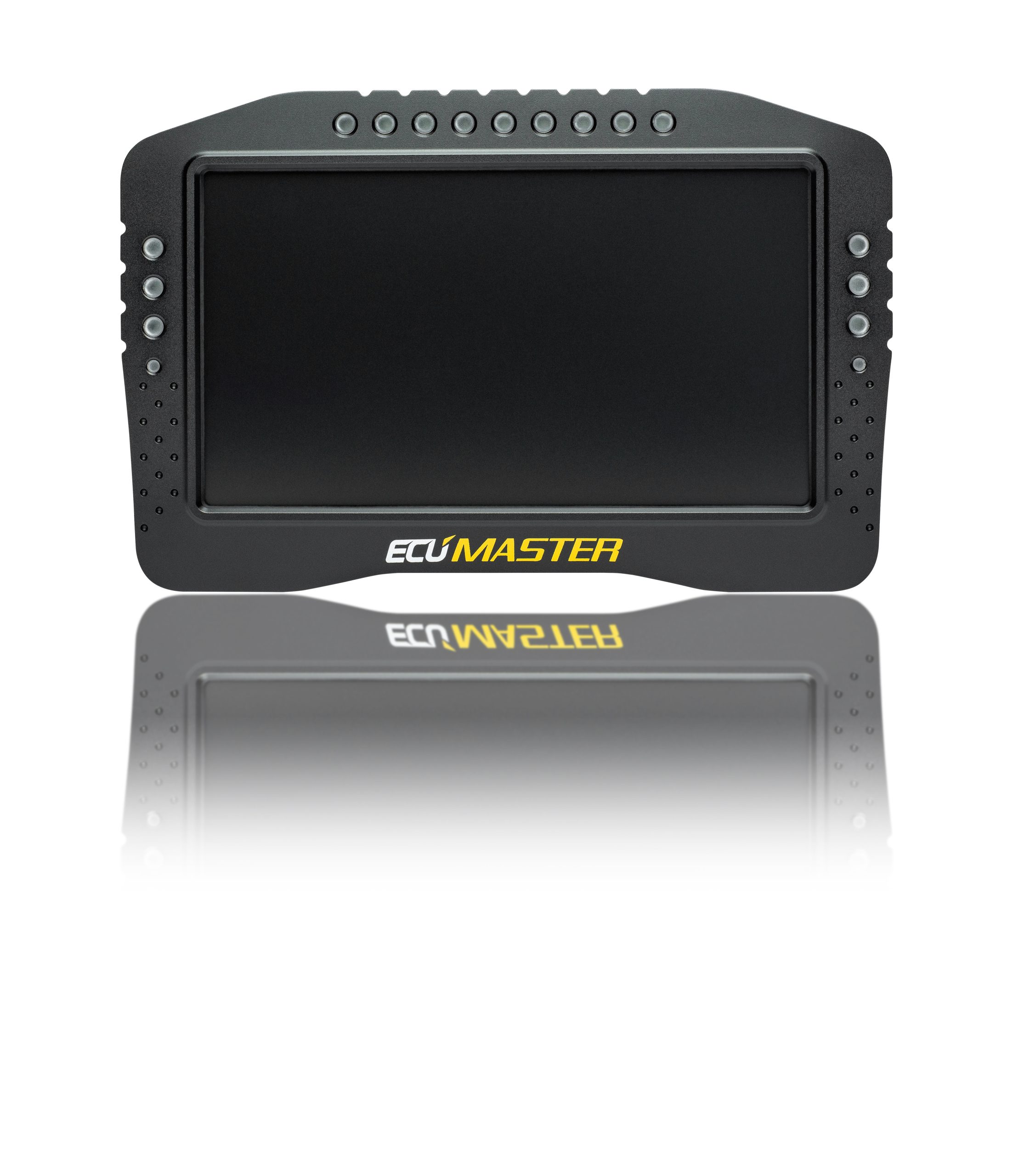

Display Type TFT 800×480
Brightness of display 5″ – 600 cd/m2, 7″ – 1000 cd/m2
Weight 5″ – 408 g ,  7″ – 732 g

INPUTS / OUTPUTS

Analogue inputs 8 inputs, 10 bits, 0-5 V, software controlled pull-up/pull-down 10K resistor. All analogue inputs can be used as a switches
Digital inputs 8 digital inputs, software controlled input sensitivity (VR, Hall), software controlled 4K7 pull-up resistors, used for engine speed sensors, Flex Fuel, wheel speeds, turbocharger shaft speed. All digital inputs can be used as switches
Outputs 2 low side outputs (switch to ground), up to 2A, 1 analogue output (0-5V) 10 bits
+5V Output Monitored 5V output for powering external sensors

COMMUNICATION

CAN Interface 2 x CAN2.0 A/B, 250, 500, 1000 Kbps
CAN streams User-defined
Serial communication RS232 Rx/Tx, AiM protocols, Ecumaster, Hondata Kpro, Autronic
USB Used for logging to external USB memory

OTHERS

Light Emitting Diodes 15 ultra bright RGB LEDs
Accelerometer/gyroscope 3D accelerometer + 3D gyroscope for the analysis of vehicle dynamics
Real-time clock Yes, battery powered
Light sensor Yes, for automatic correction of brightness
Temperature sensor Yes, for monitoring device temperature
